Product Description

Real-time vein visualization for vascular-access assessment

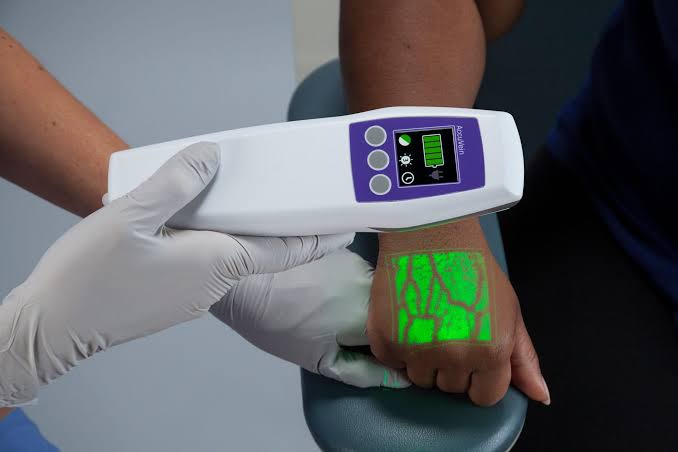

The AccuVein AV500 is a lightweight, handheld vein-visualization system that uses near-infrared technology to display a real-time map of superficial veins on the surface of the skin.

The projected image can help qualified healthcare professionals identify superficial veins, valves, and bifurcations when assessing potential sites for peripheral IV access, blood collection, and other vascular-access procedures.

The AV500 is an assessment aid and should not be used as the sole method for locating or evaluating veins. Visual inspection, palpation, clinical judgment, and established vascular-access procedures remain necessary.

Handheld, non-contact operation

The AV500 weighs approximately 10 oz / 283 g and can be operated with one hand during an initial vascular assessment.

It projects the vein image directly onto the patient’s skin without requiring physical contact. For optimal focus, the device is positioned approximately 6–10 inches / 15–25 cm above the examination area.

Adjustable image display

The AV500 provides:

• Three brightness settings
• Standard image mode
• Inverse-color image mode
• Real-time vein visualization
• One-button activation

These display options allow the clinician to adjust the projected image according to ambient lighting, skin characteristics, and the clinical environment.

Factory-aligned True Center technology

AccuVein True Center technology is designed to display the centerline of the visualized vein.

The device is factory aligned and does not require routine end-user alignment or field calibration before use.

Rechargeable clinical operation

The AV500 contains a rechargeable battery and can be stored in a compatible charging cradle or approved powered stand between procedures.

The manufacturer states that the battery typically requires replacement after approximately two to three years, depending on usage, temperature, and charging cycles. Battery replacement must be performed through an approved service facility.

Optional hands-free configurations

The handheld device can be converted to hands-free use with compatible mounting accessories.

Available configurations include:

• HF510 portable arm mount
• HF580 powered wheeled stand
• Compatible pole-mount accessories
• CC500 charging cradle
• P510 approved power supply

Hands-free accessories are sold separately unless specifically included in the quotation.

Easy-to-clean sealed housing

The AV500 has a sealed enclosure without exposed fans or ventilation openings, supporting routine point-of-care cleaning.

Approved cleaning products include specified alcohol-based and healthcare disinfectant wipes. The device must not be submerged or saturated with cleaning fluid.

Key Features

• Handheld vein-visualization system
• Near-infrared imaging technology
• Real-time superficial-vein display
• Bright green image projection
• Non-contact operation
• Approximately 10 oz / 283 g device weight
• Recommended working distance of approximately 6–10 inches
• Three brightness settings
• Inverse-color display mode
• One-button activation
• Factory-aligned True Center technology
• No routine field calibration required
• Rechargeable battery operation
• Optional hands-free mounting systems
• Sealed housing without fans or ventilation openings
• Compatible with approved point-of-care cleaning agents
• Class 1 laser device
• Intended for use by qualified healthcare professionals

Common Applications

• Peripheral IV site assessment
• Blood-draw site assessment
• Venipuncture preparation
• Pediatric vascular-access assessment
• Adult vascular-access assessment
• Assessment of difficult-to-visualize superficial veins
• Identification of visible vein paths, valves, and bifurcations
• Urgent-care treatment rooms
• Infusion and hydration areas
• Outpatient procedure rooms
• Physician offices
• Emergency-readiness areas
• Clinical training environments

Technical Specifications

Manufacturer: AccuVein, Inc.

Model: AV500

SKU: VFD-0003

Product type: Handheld vein-visualization system

Imaging technology: Near-infrared

Display method: Real-time image projected onto the skin

Projected image color: Green

Laser classification: Class 1

Operation: Handheld, non-contact

Device weight: Approximately 10 oz / 283 g

Recommended operating distance: Approximately 6–10 inches / 15–25 cm above the skin

Brightness settings: Three

Inverse display mode: Included

Alignment: Factory aligned

Routine field calibration: Not required

Preventive maintenance: No periodic preventive maintenance required by the manufacturer

Power source: Internal rechargeable battery

Battery service: Replacement through an approved service facility

Typical battery replacement interval: Approximately two to three years, depending on use

Hands-free compatibility: Compatible with approved arm, pole, and powered wheeled stands

Cleaning: Wipe cleaning with manufacturer-approved disinfectants

Immersion: Not permitted

Intended users: Qualified healthcare professionals

What Is Included

• One AccuVein AV500 handheld vein-visualization device

Charging equipment, carrying case, hands-free stand, pole mount, arm mount, and other accessories are included only when specifically listed in the final quotation.

Compatible Accessories

• CC500 charging cradle
• P510 medical-grade power supply
• HF510 portable arm mount
• HF580 powered wheeled stand
• Compatible pole-mount fixture
• Compatible carrying and storage accessories
• Manufacturer-approved battery replacement service

Frequently Asked Questions

What does the AccuVein AV500 do?

The AV500 uses near-infrared technology to project a real-time image of superficial veins onto the patient’s skin.

Does the device touch the patient?

No. It is a non-contact visualization system operated above the skin.

How far should it be held from the skin?

The recommended operating distance is approximately 6–10 inches / 15–25 cm.

Does it replace palpation and clinical judgment?

No. It is an assessment aid and should be used together with visual assessment, palpation, professional judgment, and established vascular-access procedures.

Does it identify arteries?

The device is intended to visualize superficial vasculature. It should not be relied upon to distinguish arteries from veins or determine vessel suitability without clinical assessment.

Does it require calibration?

The AV500 is factory aligned and does not require routine field calibration.

Is it rechargeable?

Yes. The device contains an internal rechargeable battery and is compatible with approved charging accessories.

Can it be used hands-free?

Yes. Compatible portable arm mounts, pole mounts, and powered wheeled stands are available separately.

How is it cleaned?

The sealed housing can be wiped using manufacturer-approved cleaning and disinfecting agents. The device must not be submerged.

What warranty is available?

AccuVein states that the AV500 includes a one-year manufacturer warranty from the original purchase date. Additional service-plan coverage may be available for new devices.

Documents and Downloads

AccuVein AV500 User Manual — PDF

https://www.accuvein.com/wp-content/uploads/2024/02/745-00001_G_AV500-User-Manual.pdf

AccuVein Instructions for Use Portal

https://www.accuvein.com/product-manuals/
