Portable general suction with AC and battery operation

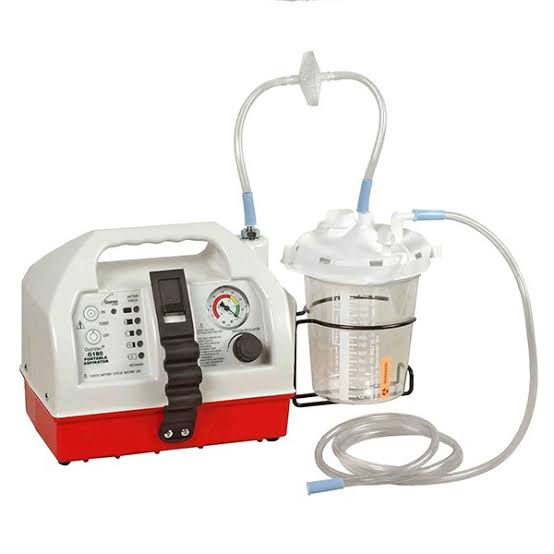

The Allied Gomco OptiVac G180 is a portable medical suction unit designed to provide adjustable general suction in hospitals, urgent-care centers, outpatient facilities, physician offices, treatment rooms, and other professional healthcare environments.

The G180 combines an oil-free diaphragm pump, adjustable vacuum regulator, analog vacuum gauge, rechargeable battery, AC power capability, battery-status indicators, and an integrated collection-canister holder in a compact portable enclosure.

The unit provides an adjustable vacuum range of approximately 25 to 550 mmHg and an open flow rate greater than 30 liters per minute.

Adjustable vacuum control

The front-mounted regulator allows the operator to increase or decrease the vacuum level according to the procedure and facility protocol.

An angled analog gauge displays the vacuum level in millimeters of mercury, helping the operator verify the selected setting before connecting the patient tubing.

The unit must be operated by appropriately trained personnel according to the official operating instructions and the healthcare facility’s suction procedures.

AC and rechargeable-battery operation

The OptiVac G180 can operate from AC electrical power or its internal rechargeable battery. It also supports an approved external 12V DC power source.

A fully charged battery provides approximately 180 minutes of operation at maximum load. The battery requires up to approximately eight hours to recharge fully. The unit can continue operating from AC power when the battery charge is low.

The battery-status display uses multiple indicator lights to show the remaining charge level and identify when charging or battery replacement may be required.

High-flow oil-free diaphragm pump

The G180 uses a single-cylinder, oil-free diaphragm pump powered by a permanent-magnet DC motor.

The pump provides an open flow rate greater than 30 liters per minute, supporting efficient general suction while avoiding routine oiling or lubrication. The manufacturer states that the pump and motor are permanently lubricated.

Hydrophobic bacteria filtration

A disposable hydrophobic bacteria filter is installed between the collection canister and the suction unit.

The filter helps protect the pump from fluid overflow and aerosol contamination. It uses a microporous membrane designed to filter particles in air while blocking aqueous fluid from entering the pump.

The filter must be replaced after contact with fluid, when airflow becomes restricted, or according to the replacement schedule in the operating manual. Tubing and disposable collection components must be handled according to the facility’s infection-control and biohazard-disposal procedures.

Portable, water-resistant enclosure

The G180 uses a fully enclosed, water-resistant thermoplastic housing designed to protect the compressor and battery while supporting routine exterior cleaning.

The integrated handle allows the unit to be carried between treatment areas. The angled control panel provides a clear view of the vacuum gauge, power controls, regulator, and battery indicators during operation.

The enclosure should be cleaned with a slightly damp cloth and a mild soap-and-water solution. The unit must be disconnected from electrical power before cleaning and must not be immersed.

Collection-canister compatibility

The unit supports compatible disposable and reusable collection-container configurations.

The configured package includes a 1,500 mL disposable collection canister, suction tubing, and hydrophobic bacteria filters. Compatible 1,200 mL glass and polycarbonate collection containers are also identified in the operating manual as available accessory configurations.

Collection canisters, tubing, filters, and patient-contact accessories must be inspected before use and replaced or processed according to their individual instructions.

Key Features

• Portable general medical suction unit
• Adjustable vacuum range from approximately 25 to 550 mmHg
• Open flow rate greater than 30 L/min
• Analog vacuum gauge
• Front-mounted vacuum regulator
• AC electrical operation
• Internal rechargeable battery
• Approved external 12V DC operation
• Approximately three hours of battery operation at maximum load
• Approximately eight-hour full recharge time
• Battery-status indicator lights
• Oil-free diaphragm pump
• Integrated carrying handle
• Water-resistant thermoplastic enclosure
• Angled control panel
• Hydrophobic bacteria filtration
• Integrated collection-canister holder
• Compatible with disposable and reusable collection containers
• Compact design for transport between clinical areas
• Three-year manufacturer warranty on the unit and one-year warranty on the battery, subject to the applicable warranty terms

Common Applications

• General clinical suction
• Urgent-care treatment rooms
• Outpatient procedure areas
• Physician offices
• Emergency-readiness stations
• Patient observation areas
• Ambulatory healthcare facilities
• Hospital departments
• Recovery and treatment areas
• Mobile clinical suction within a healthcare facility

The G180 is designed to provide general suction. The treating clinician and healthcare facility are responsible for determining whether the unit and connected accessories are appropriate for each procedure.

Technical Specifications

Manufacturer: Allied Healthcare Products

Brand: Gomco OptiVac

Model: G180

SKU: SUP-0037-FG

Product type: Portable medical suction unit

Intended purpose: General suction

Vacuum range: Approximately 25 to 550 mmHg

Open flow rate: Greater than 30 L/min

Pump type: Single-cylinder oil-free diaphragm pump

Motor: Permanent-magnet DC motor

Motor rating: Approximately 1/32 hp

Vacuum control: Adjustable regulator

Vacuum display: Analog gauge

Battery type: Rechargeable sealed lead-acid battery

Battery operating time: Approximately 180 minutes at maximum load

Full recharge time: Up to approximately eight hours

DC charging input: 12–16 VDC, 1.0 A maximum

DC operating input: 12–16 VDC, 3.4 A maximum

AC electrical configuration: 115 VAC, 50/60 Hz, 1.8 A maximum, or 230 VAC, 50/60 Hz, 0.9 A maximum, depending on the supplied configuration

Unit width: Approximately 6.8 inches

Main housing length: Approximately 10.6 inches

Overall length with collection-unit holder: Approximately 16.8 inches

Height: Approximately 9.4 inches

Weight: Approximately 11.4 lb

Operating temperature: Approximately -4°F to 120°F

Operating humidity: 10% to 95% non-condensing

MRI compatibility: Not MRI compatible

Equipment classification: Type B equipment; classified under the standard identified in the operating manual

Prescription status: Restricted to sale by or on the order of a physician

What Is Included

• Allied Gomco OptiVac G180 portable suction unit
• Adjustable vacuum regulator
• Analog vacuum gauge
• Internal rechargeable battery
• AC power supply and compatible power cord
• Integrated collection-canister holder
• One 1,500 mL disposable collection canister
• Suction tubing kit
• Three disposable hydrophobic bacteria filters
• Operating documentation

Compatible Replacement Parts and Accessories

• 1,500 mL disposable collection canisters
• 1,200 mL polycarbonate collection container with cap and float assembly
• 1,200 mL glass collection container with cap and float assembly
• 800 mL disposable collection canister
• Hydrophobic bacteria filters
• Replacement suction tubing kit
• Replacement rechargeable battery
• Carrying case with shoulder strap
• Compatible docking-station kit
• Replacement power cord
• Replacement fuse kit

Accessories and replacement components are sold separately unless listed in the selected product configuration.

Safety and Maintenance Information

• Read the complete operating manual before using the suction unit.
• Do not operate the unit in the presence of flammable anesthetics.
• Confirm that the collection container, tubing, filter, and connections are secure before use.
• Replace tubing after each patient according to the operating manual.
• Replace the bacteria filter after fluid contact, reduced airflow, or according to the recommended schedule.
• Treat used tubing, filters, collection containers, and drainage fluid as biohazardous material.
• Disconnect electrical power before cleaning the enclosure.
• Do not immerse the suction unit.
• Refer internal servicing and electrical repairs to qualified service personnel.
• Recharge the battery regularly, including during extended periods when the unit is not being used.
• The G180 is not MRI compatible.

Frequently Asked Questions

What is the Gomco OptiVac G180 used for?

The G180 is a portable aspiration pump designed to provide adjustable general suction in professional healthcare environments.

What is the vacuum range?

The adjustable vacuum range is approximately 25 to 550 mmHg.

What is the airflow rate?

The manufacturer specifies an open flow rate greater than 30 liters per minute.

Can the G180 operate without being connected to an outlet?

Yes. The unit includes an internal rechargeable battery and can operate for approximately three hours at maximum load when fully charged.

How long does the battery take to recharge?

A full recharge may require up to approximately eight hours.

Can the unit operate while the battery is low?

Yes. It can operate from AC power even when the internal battery has a low charge.

Does it include a collection canister?

Yes. This configuration includes a 1,500 mL disposable collection canister.

Is suction tubing included?

Yes. A suction tubing kit is included with this configuration.

Are bacteria filters included?

Yes. Three disposable hydrophobic bacteria filters are included with this configuration.

How often should the bacteria filter be replaced?

The operating manual states that it should be replaced after one month of patient use, when airflow becomes restricted, or immediately after contact with fluid or canister overflow.

Is the pump oil-free?

Yes. The G180 uses an oil-free diaphragm pump. The pump and motor are permanently lubricated and do not require routine oiling.

Can the unit be used in an MRI environment?

No. The operating manual identifies the G180 as not MRI compatible.

Can the enclosure be disinfected?

The exterior may be wiped with a slightly damp cloth using a mild soap-and-water solution. The unit must be disconnected from power and must not be immersed.

What warranty is provided?

The operating manual identifies a three-year limited warranty for the G180 unit and a one-year warranty for the battery, subject to the manufacturer’s warranty terms.
