Portable UV and white-light magnification for professional visual examination

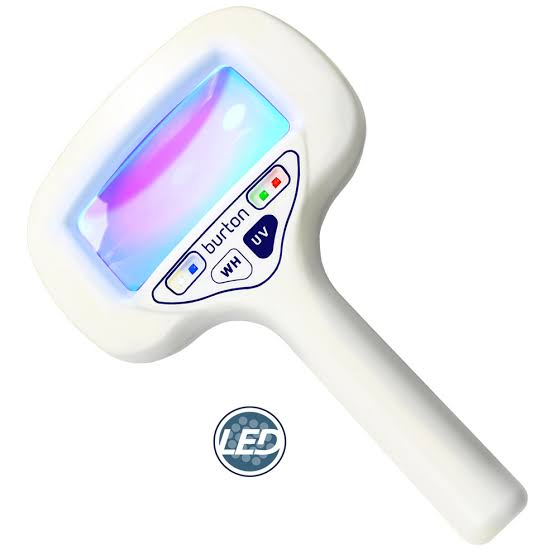

The Burton UV604LED is a lightweight handheld magnifier that combines 365 nm UVA illumination, high-quality white LED illumination, and a 5-diopter magnifying lens in one rechargeable device.

It is designed for professional visual examination and inspection in dermatology, ophthalmology, trauma care, healthcare facilities, forensic science, education, hospitality, agriculture, and industrial environments. Burton Medical identifies the UV604LED as a Wood’s light-style magnifier but specifies that it is not a diagnostic, therapeutic, or treatment device.

UV and white LED illumination

The UV604LED allows the user to switch between:

• 365 nm UVA illumination
• High-color-rendering white LED illumination

The UV mode supports visual inspection of fluorescence and surface characteristics, while the white-light mode provides bright illumination for general magnified examination.

The device should be used only as a visual examination and inspection aid. Clinical findings must be evaluated by a qualified healthcare professional using appropriate diagnostic methods.

Five-diopter magnification

The magnifier incorporates an optically ground and polished, non-yellowing glass lens.

The 5-diopter lens provides approximately 2.25× magnification and a viewing area measuring approximately 1.85 inches high by 3.85 inches wide. The glass is designed to resist yellowing and scratching during routine professional use.

High-quality white-light performance

In white-light mode, the UV604LED provides:

• 2,750 lux at 6 inches
• 3,800 K color temperature
• Color Rendering Index of 95

The high color-rendering performance supports clear visual inspection of surface color and detail.

Rechargeable cordless operation

The UV604LED contains a rechargeable lithium-ion battery that provides up to approximately four hours of continuous use.

The unit can operate with or without the power cord, allowing it to be used as a portable handheld device or connected to power during longer examination and inspection sessions.

Lightweight handheld design

The device weighs approximately 0.8 lb / 0.36 kg and is designed to remain balanced during handheld operation.

Its compact format supports movement between examination rooms and convenient storage when not in use. A protective hard carrying case is available separately.

Long-life LED illumination

The white LED source has a rated operating life exceeding approximately 36,000 hours, while the UV LED source has a rated operating life exceeding approximately 30,000 hours.

Actual service life may vary according to operating conditions, charging practices, environmental conditions, and maintenance.

Smart operating indicators

The UV604LED includes microprocessor-controlled audio and visual indicators and a battery-saving sleep mode.

These functions support routine operation and help conserve battery capacity between examinations.

Smooth, easy-to-clean exterior

The unit features a smooth exterior surface designed to support routine cleaning and disinfection.

Only compatible cleaning agents and methods should be used. The device must not be immersed or processed using methods that could damage its electronic components, optical lens, or battery.

Key Features

• Professional handheld UV and white LED magnifier
• 365 nm UVA illumination
• White LED examination illumination
• 5-diopter magnifying lens
• Approximately 2.25× magnification
• Optically ground and polished glass
• Non-yellowing lens construction
• Scratch-resistant lens surface
• Viewing area approximately 1.85 × 3.85 inches
• 2,750 lux at 6 inches in white-light mode
• 3,800 K white-light color temperature
• Color Rendering Index of 95
• Rechargeable lithium-ion battery
• Up to approximately four hours of continuous use
• Corded or cordless operation
• Battery-saving sleep mode
• Audio and visual operating indicators
• Lightweight 0.8 lb design
• Smooth exterior for routine cleaning
• 100–240V power compatibility
• UL and cUL certifications
• Five-year limited product warranty
• Two-year limited battery warranty
• Assembled in the United States
• Not a diagnostic, therapeutic, or treatment device

Common Applications

• Magnified visual skin examination
• Dermatology examination lighting
• Fluorescence observation
• General clinical visual inspection
• Ophthalmology examination support
• Trauma-care visual examination
• Forensic visual inspection
• Educational demonstrations
• Surface and material inspection
• Hospitality and food-industry inspection
• Agricultural inspection
• Industrial defect inspection

Technical Specifications

Manufacturer: Burton Medical, LLC

Model: UV604LED

Product Type: UV and white LED magnifier

UV Light Source: 365 nm UVA LED

White Light Source: White LED

White-Light Illuminance: 2,750 lux at 6 inches

White-Light Color Temperature: 3,800 K

White-Light Color Rendering Index: 95

Magnifying Lens: 5 diopter

Magnification: Approximately 2.25×

Lens Material: Optically ground and polished glass

Lens Characteristics: Non-yellowing and scratch resistant

Viewing Area: Approximately 1.85 inches high × 3.85 inches wide

White LED Rated Life: More than approximately 36,000 hours

UV LED Rated Life: More than approximately 30,000 hours

Battery Type: Rechargeable lithium-ion

Continuous Battery Operation: Up to approximately four hours

Operating Modes: Cordless or connected to power

Power Input: 100–240V

Device Weight: Approximately 0.8 lb / 0.36 kg

Indicators: Microprocessor-controlled audio and visual indicators

Power-Saving Function: Sleep mode

Certifications and Approvals: UL and cUL

Assembly Location: United States

Device Warranty: Five-year limited warranty

Battery Warranty: Two-year limited warranty

Regulatory Positioning: Not a diagnostic, therapeutic, or treatment device

What Is Included

• Burton UV604LED UV and White LED Magnifier
• Rechargeable lithium-ion battery
• U.S. power-cord adapter

The following are sold separately:

• Hard carrying case
• Replacement battery
• Replacement power-cord adapter
• Wall bracket
• International wall-plug adapter kit

Compatible Accessories

Replacement Battery Pack

Part Number: 6000412

Replacement U.S. Power-Cord Adapter

Part Number: 6000413

Wall Bracket

Part Number: 6000414

Hard Carrying Case

Part Number: 6000433

International model and international plug accessories should be selected separately for use outside the United States.

Frequently Asked Questions

What type of light does the UV604LED provide?

The device provides both 365 nm UVA illumination and white LED illumination.

Does it include magnification?

Yes. It includes a 5-diopter lens providing approximately 2.25× magnification.

What is the viewing area?

The viewing area measures approximately 1.85 inches high by 3.85 inches wide.

How bright is the white LED?

The white-light mode provides approximately 2,750 lux at a distance of 6 inches.

What is the color temperature?

The white LED has a color temperature of approximately 3,800 K.

What is the Color Rendering Index?

The white LED has a Color Rendering Index of 95.

Is the device rechargeable?

Yes. It includes a rechargeable lithium-ion battery.

How long does the battery operate?

The battery provides up to approximately four hours of continuous use.

Can it operate while connected to power?

Yes. The device can be used with or without the power cord.

How much does it weigh?

The unit weighs approximately 0.8 lb / 0.36 kg.

Is a carrying case included?

No. The hard carrying case is available separately under part number 6000433.

Is the international plug kit included?

No. This is the U.S. UV604LED configuration. The international configuration is sold separately.

Is this a diagnostic medical device?

No. Burton Medical specifies that the UV604LED is not a diagnostic, therapeutic, or treatment device. It is intended for professional visual examination, magnification, and inspection.

What warranty is provided?

The UV LED magnifier carries a five-year limited warranty, while the rechargeable battery carries a two-year limited warranty. Warranty coverage remains subject to the manufacturer’s terms and proof-of-purchase requirements.

Documents and Downloads

Burton UV604LED Product Literature and Specification Sheet — PDF

https://www.burtonmedical.com/wp-content/uploads/2024/11/lit-32-rev-01.pdf
