Schiller AT-102 Multifunctional Cardiopulmonary Diagnostic System

Schiller AT-102 Multifunctional Cardiopulmonary Diagnostic System

BB-SCHCMSP

Login view prices
Shipping calculated at checkout.
Default Title
Default Title
View full details

Schiller AT-102 Multifunctional Cardiopulmonary Diagnostic System — 12-Lead ECG | Spirometry | Ethernet LAN | Interpretation

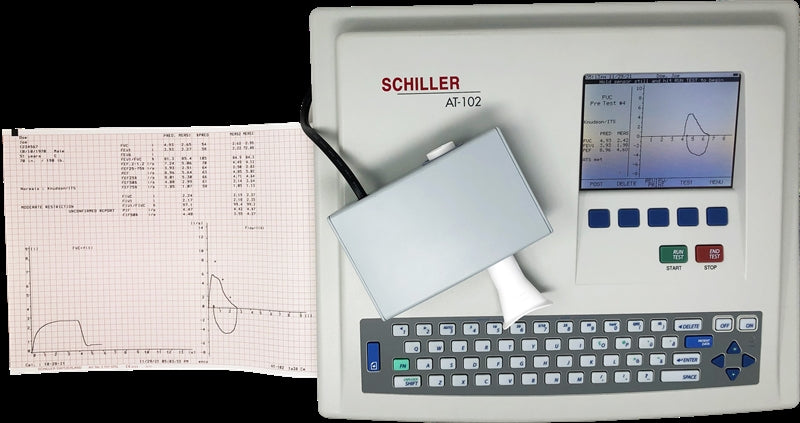

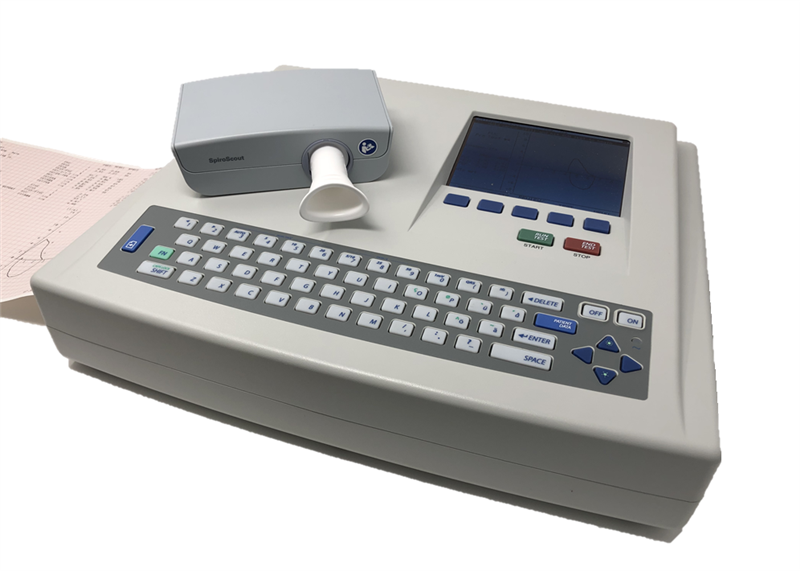

The Schiller AT-102 is a multifunctional cardiopulmonary diagnostic device combining resting 12-lead ECG, optional exercise ECG, and optional spirometry in a single, portable system. Designed for seamless integration into hospital and outpatient workflows, the AT-102 features advanced digital signal processing, broad connectivity options (Ethernet LAN, Wi-Fi, USB, RS-232), and XML data export for compatibility with EMR and cardiology data management systems.

Includes interpretation memory, SCM, Ethernet wired LAN, spirometry, and 50 mouthpieces. As a major North American medical supply distributor, Big Ben Medical Supplies offers competitive pricing on Schiller diagnostic cardiology equipment for healthcare facilities of all sizes across the US and Canada.

Key Features

  • 12-Channel Resting ECG: With optional measurement and interpretation module
  • Internal Memory: Stores 40–350 ECG records depending on configuration

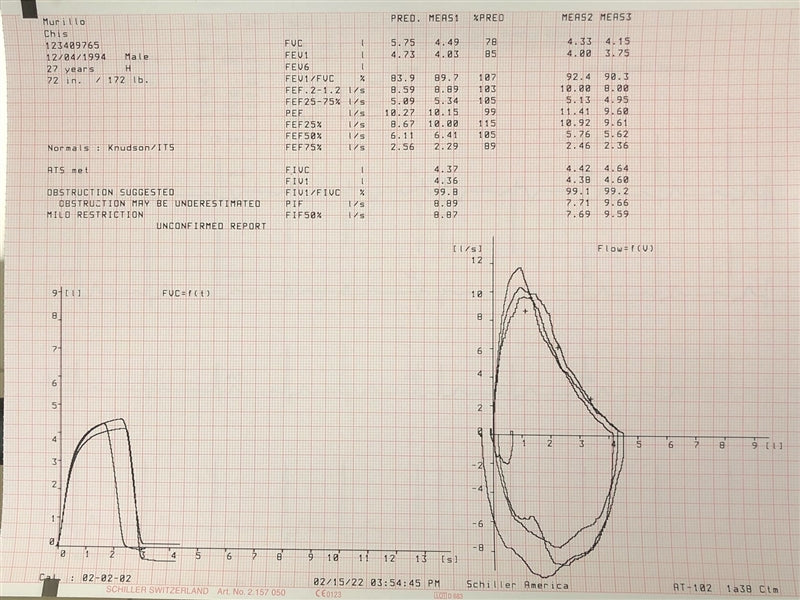

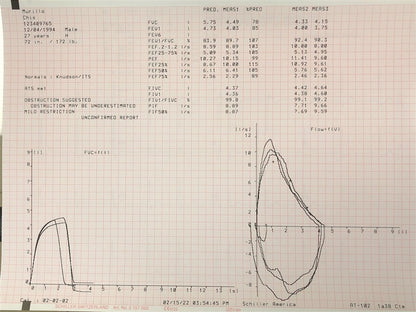

  • Spirometry Module: Real-time curve display with disposable or reusable sensors
  • Thermal A4 Printer: Internal or external printer support for ECG printouts
  • Broad Connectivity: Ethernet wired LAN, Wi-Fi, USB, RS-232 for data transfer and networking
  • XML Data Export: Compatible with EMR and cardiology data management systems
  • Advanced Digital Filters: Superior signal clarity and pacemaker detection
  • Barcode Reader: For fast, accurate patient ID entry
  • Culprit Coronary Artery Algorithm: Advanced diagnostic support
  • Portable Design: Approx. 400 x 330 x 101 mm, ~5 kg
  • Battery Backup: Rechargeable battery with ~4 hours of use
  • Intuitive Interface: Direct function keys and alphanumeric keyboard
  • Configurable Reports: Full 12-channel disclosure with customizable report formats

Product Specifications

  • Brand: Schiller
  • Model: AT-102 SCM SP
  • Functions: 12-lead resting ECG, spirometry (optional exercise ECG)
  • Memory: 40–350 ECG records
  • Printer: Thermal A4 (internal/external)
  • Connectivity: Ethernet LAN, Wi-Fi, USB, RS-232
  • Data Export: XML
  • Dimensions: Approx. 400 x 330 x 101 mm
  • Weight: Approx. 5 kg
  • Power: Mains supply + rechargeable battery (~4 hours)
  • Includes: Interpretation memory, SCM, Ethernet LAN, spirometry module, 50 mouthpieces

Spirometry CPT Codes

  • 94010 — Spirometry including graphic record
  • 94060 — Bronchospasm evaluation, pre and post (add $20 for medication)
  • 94375 — Respiratory flow volume loop
  • 94664 — Aerosol or vapor inhalations

Clinical Applications

  • Resting 12-lead diagnostic ECG in primary care and cardiology
  • Pre-operative cardiac assessment
  • Pulmonary function testing (spirometry)
  • Stress testing and exercise ECG (optional module)
  • Cardiology outpatient and hospital department workflows
  • Multi-location healthcare network standardized cardiac diagnostics

Pricing & Distributor Advantage

Big Ben Medical Supplies is one of North America’s leading distributors of Schiller cardiology and cardiopulmonary diagnostic equipment. We offer competitive wholesale pricing on the AT-102 Cardiopulmonary Diagnostic System, with volume discounts available for healthcare facilities purchasing multiple units. Our direct distributor relationships mean faster lead times, verified authentic equipment, and dedicated clinical support — advantages you won’t find with secondary-market resellers.

  • List Price: $5,000.00 per unit (includes interpretation memory, SCM, Ethernet LAN, spirometry module, and 50 mouthpieces)
  • Volume & Multi-Location Pricing: Contact us for bulk order quotes for cardiology centers, hospitals, and multi-site healthcare networks
  • Configuration Options: Optional exercise ECG module available — contact us for pricing
  • Dedicated Account Support: For hospitals, cardiology practices, and GPO/institutional purchasing departments across the US and Canada
  • Drop Ship Available: Contact us for lead time and freight details

Multi-Location & Bulk Ordering for Healthcare Facilities

Standardizing cardiopulmonary diagnostic capabilities across multiple departments, clinic locations, or a hospital network? Big Ben Medical offers fleet pricing and consolidated invoicing for healthcare organizations deploying the Schiller AT-102 at scale. Its combined ECG and spirometry functionality in a single portable unit makes it especially cost-effective for multi-site deployments where facilities want to consolidate cardiac and pulmonary diagnostics into one platform.

  • Ideal for: Cardiology clinics, primary care networks, pulmonology departments, hospital outpatient departments, pre-operative assessment centers, urgent care centers, and multi-specialty practices
  • Single platform for both ECG and spirometry reduces equipment costs and simplifies staff training across locations
  • Ethernet LAN, Wi-Fi, and XML export support multi-site EMR/HIS integration and centralized data management
  • Contact us for volume pricing and coordinated fleet delivery across the US and Canada

Frequently Asked Questions

What does the Schiller AT-102 diagnostic system do?

The Schiller AT-102 is a multifunctional cardiopulmonary diagnostic system that combines resting 12-lead ECG with automatic interpretation, optional exercise ECG, and optional spirometry (pulmonary function testing) in a single portable device. It is designed for cardiology, primary care, pulmonology, and pre-operative assessment workflows.

Does the Schiller AT-102 have automatic ECG interpretation?

Yes. The AT-102 includes an interpretation memory module with the Culprit Coronary Artery Algorithm for advanced diagnostic support, reducing manual interpretation time and supporting clinical decision-making in cardiology and primary care settings.

Does the Schiller AT-102 include spirometry?

Yes. This configuration includes the spirometry module with 50 mouthpieces, providing real-time pulmonary function curve display with disposable or reusable sensors. It supports CPT codes 94010, 94060, 94375, and 94664 for billable spirometry services.

Does the Schiller AT-102 connect to EMR systems?

Yes. The AT-102 features Ethernet wired LAN, Wi-Fi, USB, and RS-232 connectivity with XML data export, enabling seamless bidirectional integration with most major EMR and cardiology data management systems for direct, error-free transfer of ECG and spirometry data.

How long does the battery last on the Schiller AT-102?

The AT-102 includes a rechargeable battery providing approximately 4 hours of untethered operation, making it suitable for mobile use between exam rooms, satellite clinics, and facilities without fixed power access at every diagnostic station.

What is the difference between the Schiller AT-102 and the Cardiovit FT-1?

The AT-102 is a full cardiopulmonary workstation combining 12-lead ECG, spirometry, and optional exercise ECG in a larger portable unit (~5 kg) with a thermal A4 printer and alphanumeric keyboard — ideal for dedicated diagnostic departments. The FT-1 is an ultra-lightweight tablet-format ECG machine (~2.4 lbs) optimized for rapid spot-check ECGs in high-volume clinical settings. Both are available from Big Ben Medical Supplies.

Can I buy the Schiller AT-102 in bulk for multiple clinic locations?

Yes. Big Ben Medical Supplies specializes in multi-unit and multi-location orders for healthcare networks. Contact our team for volume pricing, consolidated shipping, and institutional billing terms for qualified organizations.

What CPT codes apply to the Schiller AT-102?

For ECG services: 93000 (12-Lead ECG with interpretation), 93005 (Tracing Only), 93010 (Interpretation Only). For spirometry: 94010 (Spirometry with graphic record), 94060 (Bronchospasm evaluation), 94375 (Respiratory flow volume loop), 94664 (Aerosol/vapor inhalations). Consult your billing team for coding guidance specific to your practice.

Product Documentation

The following documentation is available for the Schiller AT-102 Cardiopulmonary Diagnostic System:

Order Today

Equip your cardiology and pulmonary diagnostic program with the Schiller AT-102 from a distributor you can trust. Big Ben Medical Supplies — your partner in healthcare equipment procurement across North America.
