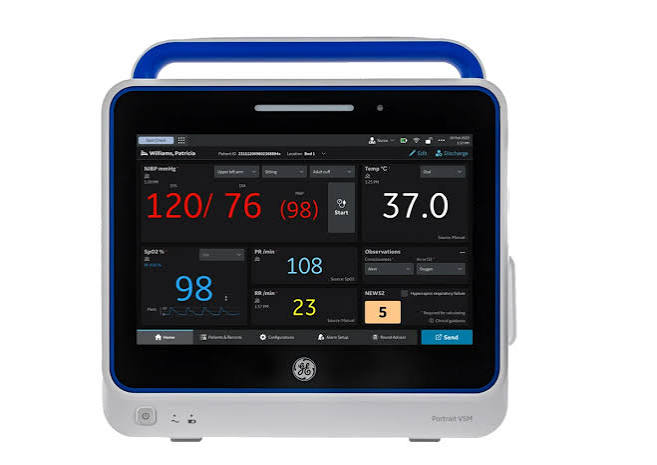

GE HealthCare Portrait VSM Vital Signs Monitor with Masimo SET, SureTemp & WLAN

The GE HealthCare Portrait VSM Vital Signs Monitor is a versatile clinical monitoring system designed to support efficient vital-sign collection across hospitals, outpatient facilities, specialty clinics, and general-care environments.

Building on GE HealthCare’s DINAMAP monitoring platform, Portrait VSM combines DINAMAP SuperSTAT non-invasive blood pressure, Masimo SET pulse oximetry, Welch Allyn SureTemp temperature measurement, and wireless network connectivity in a compact touchscreen system.

The monitor supports both routine spot-check workflows and continuous monitoring, allowing clinical teams to adapt the system to different patient-care requirements without changing monitoring platforms.

Key Features

• DINAMAP SuperSTAT non-invasive blood pressure monitoring
• Masimo SET SpO₂ technology
• Oxygen saturation, pulse rate, and perfusion index measurements
• Welch Allyn SureTemp temperature capability
• 10.1-inch capacitive touchscreen display
• 1280 × 800 WXGA resolution
• Spot-check and continuous monitoring modes
• Adult, pediatric, and neonatal patient support
• Automatic, manual, and continuous NIBP measurement modes
• WLAN wireless network connectivity
• Patient-data storage for up to 10,000 measurement records
• Configurable clinical workflow
• USB connectivity
• Rechargeable lithium-ion battery
• Designed for mobile, bedside, and patient-rounding workflows

Selected Configuration

This configuration includes:

• GE HealthCare Portrait VSM platform
• DINAMAP NIBP
• Masimo SET SpO₂
• Welch Allyn SureTemp temperature capability
• WLAN connectivity
• U.S. English configuration
• U.S. power configuration

DINAMAP SuperSTAT NIBP

Portrait VSM uses GE HealthCare DINAMAP SuperSTAT technology for non-invasive blood pressure measurements in adult, pediatric, and neonatal patients.

The SuperSTAT algorithm evaluates pulse characteristics during measurement and is designed to provide efficient blood-pressure determinations while accounting for challenging clinical conditions such as patient movement and low perfusion.

NIBP Measurement Modes

• Manual
• Automatic
• Continuous measurement for up to five minutes

NIBP Measurement Range

Adult / Pediatric

• Systolic: 30–290 mmHg
• Mean: 20–260 mmHg
• Diastolic: 10–220 mmHg

Neonatal

• Systolic: 30–140 mmHg
• Mean: 20–125 mmHg
• Diastolic: 10–110 mmHg

Masimo SET Pulse Oximetry

The selected configuration features Masimo SET pulse oximetry, designed to provide oxygen-saturation measurements in normal as well as challenging conditions involving motion or low perfusion.

Measurements include:

• SpO₂ oxygen saturation
• Pulse rate
• Perfusion Index (PI)

SpO₂ Measurement Range

0–100%

Masimo SET technology supports adult, pediatric, and neonatal patient monitoring.

Welch Allyn SureTemp Temperature

The integrated Welch Allyn SureTemp temperature technology supports rapid clinical temperature measurements for adult and pediatric patients.

Typical predictive measurement times include:

• Oral: approximately 4–6 seconds
• Pediatric axillary and rectal: approximately 10–13 seconds
• Adult axillary: approximately 12–15 seconds

Temperature Measurement Range

26.7°C–43.3°C

Display

Display Size: 10.1 in
Display Type: Capacitive touchscreen
Resolution: 1280 × 800 WXGA

The touchscreen interface provides clear access to patient measurements, monitoring information, workflow functions, and stored patient records.

Spot-Check and Continuous Monitoring

Portrait VSM can transition between routine vital-sign spot checks and continuous monitoring.

This flexibility makes the system suitable for:

• Patient admission
• Routine clinical observations
• Nursing rounds
• General-care monitoring
• Outpatient examinations
• Observation areas
• Post-procedure monitoring
• Specialty-clinic workflows

Patient Data Storage

Portrait VSM can store up to 10,000 patient measurement records, supporting review and documentation of previous vital-sign observations.

Connectivity

This configuration includes WLAN wireless connectivity.

The Portrait VSM platform is designed to support connected healthcare workflows, including compatible hospital information and electronic medical record environments when the required network infrastructure, interfaces, and software options are configured.

Power

AC Input: 100–240 VAC, 50/60 Hz
Battery Type: Rechargeable lithium-ion

The system can provide more than approximately 5.5 hours of battery operation under GE HealthCare’s specified test conditions.

Physical Specifications

Base Monitor Dimensions:
Approximately 10.8 × 10.4 × 6.9 in
275 × 265 × 175 mm

Base Monitor Weight:
Up to approximately 8.4 lb / 3.8 kg

Optional Accessories and Workflow Options

Compatible Portrait VSM options may include:

• Mobile roll stand
• Wall mounting
• Barcode scanner
• Integrated printer
• Early Warning Score software
• EMR connectivity options
• Additional patient sensors and accessories

Optional equipment is available separately depending on the desired clinical configuration.

Clinical Applications

Suitable for:

• Hospitals
• Medical and surgical units
• General-care environments
• Specialty clinics
• Outpatient centers
• Ambulatory-care facilities
• Internal medicine practices
• Observation areas
• Adult care
• Pediatric care
• Neonatal monitoring environments

Manufacturer Documents

GE HealthCare Portrait VSM — Official Product Page

https://www.gehealthcare.com/en-us/products/patient-monitoring/patient-monitors/portrait-vsm

GE HealthCare Portrait VSM — Official Manufacturer Brochure

https://www.gehealthcare.com/content/dam/gehc/global/products/patient-monitoring/portrait-vsm/documents/brochure-portrait-vsm-monitor-JB24889XX_v2-br-en.pdf

FAQ

What vital signs does the GE Portrait VSM measure?

This configuration provides non-invasive blood pressure, SpO₂, pulse rate, perfusion index, and temperature measurement.

Which SpO₂ technology is included?

This configuration uses Masimo SET pulse oximetry, including SpO₂, pulse-rate, and perfusion-index measurements.

Which temperature technology is included?

This configuration includes Welch Allyn SureTemp temperature capability.

Can Portrait VSM be used for both spot checks and continuous monitoring?

Yes. Portrait VSM is designed to support both routine spot-check workflows and continuous patient monitoring.

Can it be used for pediatric patients?

Yes. Portrait VSM supports adult, pediatric, and neonatal patient populations.

Does this configuration have Wi-Fi?

Yes. This configuration includes WLAN wireless connectivity.

Does the monitor store patient measurements?

Yes. Portrait VSM supports storage of up to 10,000 patient measurement records.

Does this configuration include a roll stand?

A roll stand is available as an optional accessory.

Does this configuration include a printer?

A printer is an available system option and is not included in this configuration.

Does Portrait VSM support EMR connectivity?

The Portrait VSM platform supports connected clinical workflows and compatible EMR integration. The required interfaces, software licenses, and healthcare IT configuration depend on the facility’s system.
