HEINE DELTAone K-210.28.305 Handheld LED Dermatoscope Complete with Case
HEINE DELTAone K-210.28.305 Handheld LED Dermatoscope Complete with Case
SKU:BB-HO-K-210.28.305
Default Title
Request a quotation to confirm product availability, final shipping cost, and delivery requirements before ordering.
Default Title
Compact professional dermatoscopy for contact and non-contact examination
The HEINE DELTAone is a compact handheld dermatoscope designed for the non-invasive examination of skin in professional healthcare environments.
Its achromatic optical system, 10× magnification, LEDHQ illumination, polarized and non-polarized viewing modes, and 21 mm true field of view support detailed visualization of skin structures during dermatology, primary-care, urgent-care, and outpatient examinations.
The compact black-and-silver design is easy to carry between examination rooms and fits comfortably into a clinical coat pocket.
Achromatic optical system
The DELTAone uses a three-element achromatic HEINE optical system designed to provide a sharp, evenly illuminated image across the field of view.
The optical system delivers:
- 10× magnification
- 21 mm true field of view
- 22 mm lens diameter
- Multilayer-coated optical surfaces
- Diopter adjustment from -4 to +4
- Clear imaging at different observation distances
The focus can be adjusted according to the clinician’s eyesight and preferred examination distance.
Polarized and non-polarized illumination
A dedicated toggle button allows the clinician to switch between polarized and non-polarized illumination.
Polarized light helps reduce surface reflections and may be used without immersion fluid for many examinations. Non-polarized contact examination can be performed with the contact plate and an appropriate immersion medium when clinically indicated.
The examination mode should be selected according to the lesion, clinical workflow, and practitioner preference.
Three adjustable brightness levels
The DELTAone provides three selectable illumination levels.
Its LEDHQ lighting system produces a typical color temperature of approximately 5,700 K and a color rendering index of at least 90. The LED has a typical operating life exceeding 50,000 hours.
Contact and non-contact examination
The dermatoscope can be used for both contact and non-contact skin examination.
For contact dermatoscopy, the supplied contact plate is positioned against the skin. For non-contact examination, the contact plate can be removed, providing a working distance of approximately 15 mm.
The manufacturer’s instructions permit wound examination only in non-contact mode. The device is intended for use by qualified medical professionals in professional healthcare environments.
Autoclavable contact plate with measurement scale
The included contact plate features an integrated millimeter scale to assist with measuring visible skin lesions.
The contact plate can be removed for cleaning and reprocessing and is autoclavable according to the manufacturer’s instructions. The dermatoscope body must be cleaned and disinfected using the approved surface-reprocessing procedures and must not be steam sterilized.
Rechargeable lithium-ion battery
The DELTAone is powered by an internal rechargeable lithium-ion battery.
Typical operating time ranges from approximately 80 minutes at maximum power consumption to approximately 460 minutes at minimum power consumption. Typical charging time through the USB connection is approximately 75 minutes.
The complete configuration includes a medical-grade USB power supply and compatible country adapters.
Optional digital documentation
The DELTAone can be connected to compatible smartphones using an appropriate HEINE smartphone adapter or universal smartphone connector.
Compatible image-management solutions can support:
- Capturing dermatoscopic images
- Patient-image organization
- Serial documentation of lesion changes
- Image review and sharing
- Clinical documentation
Smartphones, adapters, mounting cases, and software services are not included unless specified in the quotation.
Key Features
- Compact handheld professional dermatoscope
- Black-and-silver Standard Edition
- 10× magnification
- 21 mm true field of view
- 22 mm lens diameter
- Three-element achromatic optical system
- HEINE LEDHQ illumination
- Three adjustable brightness levels
- Polarized examination mode
- Non-polarized examination mode
- One-button illumination toggle
- Contact and non-contact examination
- Diopter adjustment from -4 to +4
- Autoclavable contact plate
- Integrated lesion-measurement scale
- Rechargeable lithium-ion battery
- Typical USB charging time of approximately 75 minutes
- Compact 128 × 57 × 40 mm body
- Medical-grade USB power supply included
- Protective zipper case included
- Compatible with optional smartphone documentation accessories
- Latex-free construction
- Manufactured in Germany
Common Applications
- Dermatology examinations
- Skin-lesion visualization
- Pigmented-lesion assessment
- Primary-care skin examinations
- Urgent-care skin assessment
- Outpatient dermatology procedures
- General practitioner examinations
- Podiatry skin assessment
- Serial clinical documentation with optional accessories
- Contact dermatoscopy
- Non-contact dermatoscopy
The DELTAone supports visualization and documentation. Clinical interpretation, diagnosis, biopsy decisions, and treatment planning remain the responsibility of a qualified healthcare professional.
Technical Specifications
Manufacturer: HEINE Optotechnik GmbH & Co. KG
Product Family: DELTAone
Catalog Number: K-210.28.305
Edition: Standard Edition
Color: Black and silver
Product Type: Handheld dermatoscope
Intended Use: Temporary, non-invasive contact and non-contact examination of skin
Magnification: 10×
True Field of View: 21 mm
Lens Diameter: 22 mm
Optical System: Three-element achromatic optical system
Diopter Adjustment: -4 to +4 dpt
Illumination: HEINE LEDHQ
Brightness Settings: Three
Typical Illuminance: Greater than 17,000 lux at 15 mm without contact plate
Typical Color Temperature: 5,700 K
Typical Color Rendering Index: At least 90
Typical LED Life: Greater than 50,000 hours
Viewing Modes: Polarized and non-polarized
Examination Modes: Contact and non-contact
Non-Contact Working Distance: Approximately 15 mm
Contact Plate: Removable and autoclavable with measurement scale
Power Source: Internal rechargeable lithium-ion battery
USB Input: 5 V DC, 650 mA
Maximum Power Consumption: 3.25 W
Typical Battery Runtime at Maximum Consumption: Approximately 80 minutes
Typical Battery Runtime at Minimum Consumption: Approximately 460 minutes
Typical USB Charging Time: Approximately 75 minutes
Dimensions: Approximately 128 × 57 × 40 mm
Protection Class: IP20
Materials: Plastic, metal, and glass
Latex Status: Contains no latex
Phthalate Status: Contains no phthalates
Country of Origin: Germany
U.S. Classification: Class I, 510(k) exempt
FDA Regulation Number: 880.6350
FDA Product Code: KYT

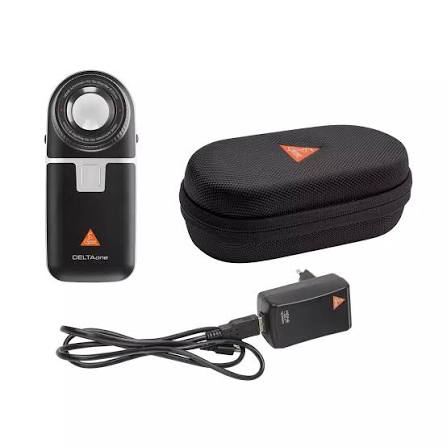

What Is Included
- HEINE DELTAone Standard Edition dermatoscope
- DELTAone contact plate with measurement scale
- Medical-grade USB power supply
- USB charging cable
- Country adapter set
- Protective zipper case
- Product documentation
Compatible Accessories
- DELTAone replacement contact plate with scale
- DELTAone small contact plate for difficult-to-access areas
- HEINE universal smartphone adapter
- Compatible smartphone mounting case
- DELTAone belt case
- Replacement USB power supply
- Replacement charging cable
Accessories are sold separately unless included in the final quotation.
Frequently Asked Questions
What is the HEINE DELTAone used for?
The DELTAone is a handheld dermatoscope used for non-invasive contact and non-contact examination of skin by qualified healthcare professionals.
What magnification does it provide?
The DELTAone provides 10× magnification.
What is the field of view?
It provides a true field of view measuring approximately 21 mm through a 22 mm lens.
Does it support polarized dermatoscopy?
Yes. The device includes polarized illumination and allows the clinician to switch between polarized and non-polarized light using a dedicated button.
Can it be used without touching the skin?
Yes. Removing the contact plate allows non-contact examination at a working distance of approximately 15 mm.
Is the contact plate included?
Yes. The K-210.28.305 configuration includes a contact plate with an integrated measurement scale.
Can the contact plate be sterilized?
Yes. The removable contact plate is autoclavable according to the manufacturer’s official reprocessing instructions.
Can the complete dermatoscope be autoclaved?
No. Only approved removable components may be steam sterilized. The dermatoscope body must be cleaned and disinfected according to the manufacturer’s surface-reprocessing instructions.
How many brightness settings are available?
The DELTAone has three selectable brightness levels.
Is the battery rechargeable?
Yes. It contains an internal rechargeable lithium-ion battery.
How long does the battery operate?
Typical operating time ranges from approximately 80 minutes at maximum power consumption to approximately 460 minutes at minimum power consumption.
How long does charging take?
Typical USB charging time is approximately 75 minutes.
Can it capture digital images?
Digital imaging is possible using compatible HEINE smartphone adapters, mounting accessories, and image-management solutions. These accessories are available separately.
Does the package include a smartphone?
No. Smartphones and smartphone adapters are not included.
Is a carrying case included?
Yes. The complete Standard Edition configuration includes a protective zipper case.
Documents and Downloads
HEINE DELTAone Technical Product Information — PDF
https://shop.heine.com/media/96/41/0d/1742226265/HEINE_DELTAone_Techn_Product_Information_EN_GB.pdf
HEINE DELTAone and DELTA 30 Product Brochure — PDF
https://shop.heine.com/media/9e/e7/6d/1771930708/HEINE_DELTA30_DELTAone_Brochure_EN_US_CA.pdf
