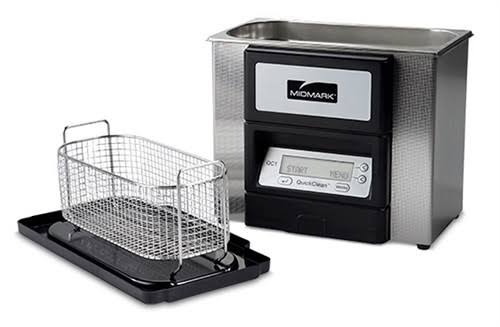

Midmark QuickClean QC1 1.2-Gallon Tabletop Ultrasonic Cleaner
Midmark QuickClean QC1 1.2-Gallon Tabletop Ultrasonic Cleaner
SKU:BB-MM-QC1-01
Default Title
Request a quotation to confirm product availability, final shipping cost, and delivery requirements before ordering.
Default Title
Compact ultrasonic cleaning for reusable medical instruments
The Midmark QuickClean QC1 is a compact tabletop ultrasonic cleaner designed to support the cleaning stage of reusable-instrument processing in physician offices, urgent-care centers, outpatient clinics, procedure rooms, and specialty practices.
With a 1.2-gallon working capacity, digital controls, a stainless-steel safety basket, programmable cycle settings, and automatic low-water detection, the QC1 provides a practical instrument-cleaning solution for facilities with limited counter space and moderate processing volumes.
The QuickClean QC1 removes debris from compatible reusable instruments before rinsing, drying, inspection, packaging, and sterilization. It is an ultrasonic cleaner and does not sterilize instruments.
Frequency-Leap ultrasonic cleaning technology
The QC1 uses Midmark Frequency-Leap technology to distribute ultrasonic cleaning activity throughout the bath.
The ultrasonic waves create microscopic cavitation bubbles in the cleaning solution. As the bubbles collapse, they help loosen debris from instrument surfaces, joints, hinges, serrations, and other areas that may be difficult to reach through manual cleaning alone.
All instruments and accessories must be confirmed as compatible with ultrasonic cleaning according to their individual instructions for use.
Digital LCD control panel
The digital LCD control panel displays operating prompts and allows staff to select preset or customized cycle settings.
The unit stores the previous cycle setting, helping facilities maintain a repeatable cleaning process without re-entering the preferred cycle time before every load.
Cleaning-cycle time can be adjusted from 1 to 99 minutes. The factory-programmed cleaning cycle is 10 minutes and may be adjusted according to instrument condition, cleaning-solution instructions, and facility procedures.
Automatic low-water detection
An integrated fluid sensor monitors the solution level inside the tank.
When the liquid level is insufficient, the cleaner displays an alert and prevents the ultrasonic cycle from running until the bath is properly filled. This feature helps protect the unit and supports consistent operation.
Degas-cycle capability
Freshly prepared cleaning solution may contain dissolved air that can reduce ultrasonic cleaning performance.
The QC1 includes a degas function that allows trapped air bubbles to rise out of the solution before instruments are loaded. Midmark recommends running the degas cycle without instruments and indicates that approximately 5 to 10 minutes may be appropriate for preparing fresh solution.
Stainless-steel safety basket
A full-size stainless-steel safety basket is included with the QC1.
The basket keeps instruments suspended above the tank bottom during operation. Instruments should not be placed directly on the bottom of the ultrasonic tank because direct contact may interfere with cleaning performance or damage the equipment.
The basket provides internal working dimensions of approximately 10.4 inches long, 4.5 inches wide, and 4.3 inches high.
Compact tabletop footprint
The QC1 measures approximately 13.5 inches long, 10.2 inches wide including the drain, and 10.4 inches high.
Its compact size allows it to fit into instrument-processing rooms, procedure areas, utility spaces, and clinical workrooms where countertop space is limited.
The cleaner weighs approximately 12.7 lb, with an approximate shipping weight of 14.6 lb.
Integrated drain system
The tabletop cleaner includes a drain hose and hose connector to support controlled removal of used cleaning solution.
Cleaning liquid should be changed according to the type and volume of instruments being processed. The tank, basket, exterior surfaces, and drain components should be maintained according to the official user guide.
Supports a standardized instrument-processing workflow
The QuickClean QC1 is intended for the cleaning stage of a complete instrument-processing workflow.
After ultrasonic cleaning, reusable instruments should be rinsed, dried, inspected for remaining debris or damage, packaged when required, and processed in a compatible sterilizer according to the instrument manufacturer’s instructions.
An ultrasonic cleaner does not replace a steam sterilizer, cleaning-solution requirements, manual inspection, sterilization monitoring, or facility infection-control procedures.
Key Features
- Compact tabletop ultrasonic cleaner
- 1.2-gallon / 4.5-liter working capacity
- Advanced Frequency-Leap ultrasonic technology
- Ultrasonic operating frequency of approximately 32–38 kHz
- Digital LCD control panel
- Preset and customizable operating settings
- Adjustable cleaning-cycle time from 1 to 99 minutes
- Factory-programmed 10-minute cleaning cycle
- Previous-cycle memory
- Automatic low-water detection
- Degas-cycle capability
- Stainless-steel safety basket included
- Lid included
- Integrated drain connection
- Drain hose and hose connector included
- 115V U.S. electrical configuration
- Compact 13.5 × 10.2 × 10.4-inch footprint
- Approximately 12.7 lb unit weight
- Three-year manufacturer limited warranty
- Optional beaker kit and additional safety basket available
Common Applications
- Cleaning compatible reusable medical instruments
- Minor-procedure instrument processing
- Dermatology instrument cleaning
- Gynecology instrument cleaning
- Podiatry instrument cleaning
- Orthopedic instrument cleaning
- Physician-office instrument processing
- Urgent-care procedure-room support
- Outpatient clinic instrument processing
- Preparation of compatible instruments before sterilization
- Cleaning small instruments using the optional beaker kit
Technical Specifications
Manufacturer: Midmark Corporation
Product family: QuickClean
Model: QC1-01
Product type: Tabletop ultrasonic instrument cleaner
Working capacity: 1.2 gal / 4.5 L
Maximum tank capacity: Approximately 1.3 gal / 5 L
Overall length: 13.5 in / 34.5 cm
Overall width including drain: 10.2 in / 26 cm
Overall height: 10.4 in / 26.5 cm
Tank dimensions: 11.8 × 5.9 × 5.9 in / 30 × 15 × 15 cm
Basket internal dimensions: Approximately 10.4 × 4.5 × 4.3 in / 26.5 × 11.5 × 11 cm
Unit weight: 12.7 lb / 5.76 kg
Shipping weight: 14.6 lb / 6.64 kg
Ultrasonic frequency: Approximately 32–38 kHz
Cycle-time range: 1–99 minutes
Factory-programmed cycle: 10 minutes
Controls: Digital LCD control panel
Cycle memory: Previous-cycle setting retained
Fluid-level sensor: Included
Degas function: Included
Safety basket: Stainless-steel basket included
Electrical input: 115 VAC ±10%, 60 Hz
Electrical consumption: 110 W, 1.0 A
Ultrasonic output: 100 W
Installation type: Tabletop
Warranty: Three-year manufacturer limited warranty
Applicable safety standards:
- UL 61010-1:2012
- CAN/CSA C22.2 No. 61010-1:2012
- EN 60601-1-2:2007
- EN 61326:2013
- FCC CFR 47 Part 15, Part B
What Is Included
- Midmark QuickClean QC1-01 Ultrasonic Cleaner
- Stainless-steel safety basket
- Tank lid
- Drain hose
- Hose connector
- Power cable
- User manual
Compatible Accessories
QC1 Two-Beaker Accessory Kit
Part Number: 9A612001
Includes compatible beakers, beaker-positioning cover with rings, and beaker lids for cleaning small compatible items.
Replacement QC1 Safety Basket
Part Number: 002-10007-00
Midmark General-Purpose Cleaner
Part Number: 9A296001
Midmark Tartar and Stain Remover
Part Number: 9A297001
Midmark Enzymatic Cleaner
Part Number: 9A298001
Cleaning agents and concentrations must be selected according to the cleaning-solution manufacturer’s instructions and the instrument manufacturer’s compatibility requirements.
Frequently Asked Questions
What is the Midmark QuickClean QC1 used for?
The QC1 is used to ultrasonically clean compatible reusable medical instruments before inspection, packaging, and sterilization.
Does the QC1 sterilize instruments?
No. The QC1 is an ultrasonic cleaner. Instruments must undergo the appropriate sterilization or disinfection process after cleaning according to their individual instructions for use.
What is the tank capacity?
The QC1 has a working capacity of approximately 1.2 gallons or 4.5 liters.
Is a cleaning basket included?
Yes. A full-size stainless-steel safety basket is included.
Can instruments be placed directly on the tank bottom?
No. Instruments should be placed in the safety basket and suspended above the bottom of the tank.
Does the cleaner include a timer?
Yes. Cleaning-cycle time can be adjusted from 1 to 99 minutes. The factory-programmed cleaning cycle is 10 minutes.
Does it remember the previous cycle setting?
Yes. Built-in data storage retains the previous cycle setting.
What happens when the water level is too low?
The fluid sensor displays an alert and prevents the cleaner from running until the bath is properly filled.
Does the QC1 include a degas function?
Yes. The degas cycle helps remove dissolved air from freshly prepared cleaning solution before instruments are loaded.
Does the cleaner heat the solution?
The QC1 is not marketed as a heated ultrasonic cleaner. Cleaning-solution temperature should follow the cleaner and instrument manufacturers’ instructions.
What electrical supply does it require?
The QC1-01 requires 115 VAC ±10%, 60 Hz, 110 W, and 1.0 A.
How large is the unit?
It measures approximately 13.5 inches long, 10.2 inches wide including the drain, and 10.4 inches high.
How much does it weigh?
The tabletop unit weighs approximately 12.7 lb.
Is a drain system included?
Yes. A drain hose and hose connector are included.
Can very small instruments be cleaned?
The optional QC1 beaker accessory kit can be used for small compatible items that are appropriate for ultrasonic cleaning.
What cleaning solutions are available?
Midmark offers general-purpose, enzymatic, and tartar-and-stain cleaning solutions. The selected solution must be compatible with the instruments being processed.
What maintenance is required?
The cleaning solution should be changed regularly, and the tank and basket should be cleaned and inspected. Midmark also recommends periodic performance testing, including a quarterly foil test or testing whenever reduced cleaning performance is suspected.
What warranty is included?
The QC1 carries a three-year manufacturer limited warranty.
Documents and Downloads
Midmark QuickClean User Guide — PDF
https://technicallibrary.midmark.com/PDF/003-10007-99.pdf
Midmark QuickClean Quick Reference and Maintenance Guide — PDF
https://technicallibrary.midmark.com/PDF/003-10570-00.pdf
