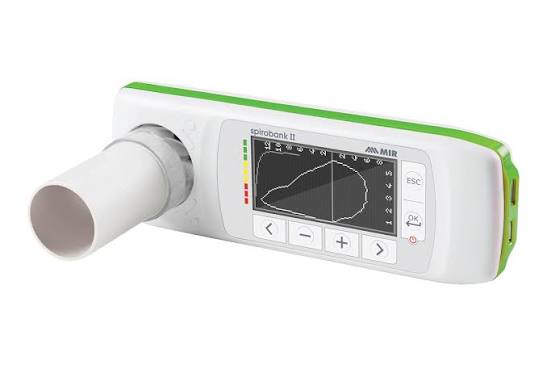

MIR Spirobank II Basic Handheld Spirometer — 911021

The MIR Spirobank II Basic is a portable handheld spirometer designed for basic pulmonary function testing in urgent care centers, primary care practices, occupational health clinics, pediatric offices, sports medicine facilities, and respiratory screening programs.

It can operate independently as a stand-alone spirometer or connect to a Windows or Mac computer through USB for real-time testing with MIR Spiro software. Test results, curves, and interpretations can be viewed directly on the device or through the connturn

Key Features

• Handheld, portable spirometer
• Stand-alone and computer-based operation
• USB connection for real-time PC testing
• FVC, VC, IVC, and pre/post-bronchodilator testing
• Displays test results and flow-volume curves
• Integrated traffic-light interpretation system
• Audible coaching to support patient effort
• High-resolution backlit display
• Integrated temperature sensor
• Automatic BTPS conversion
• Large selection of predicted values
• GLI and ERS predicted sets available
• Internal storage for more than 10,000 tests
• Rechargeable lithium-ion battery
• Up to approximately 50 hours of battery operation
• Compatible with disposable FlowMIR turbines
• Compatible with reusable MIR turbines
• MIR Spiro software compatibility
• EMR and EHR connectivity through MIR Spiro software


Clinical Applications

The MIR Spirobank II Basic may support respiratory assessment and screening in:

• Urgent care centers
• Primary care and family medicine practices
• Occupational health clinics
• Pediatric clinics
• Pulmonology practices
• Sports medicine clinics
• Pre-employment screening programs
• Community health programs
• Outpatient medical facilities

The device is intended for use by trained healthcare professionals according to the manufacturer’s instructions and applicable clinical protocols.

Supported Tests

• Forced Vital Capacity — FVC
• Vital Capacity — VC
• Inspiratory Vital Capacity — IVC
• Pre- and post-bronchodilator comparison

Available parameters include:

• FVC
• FEV1
• FEV1/FVC
• FEV1%
• PEF
• FEF25–75
• FET
• BEV
• VC
• IVC
• IC
• ERV
• Estimated Lung Age


Technical Specifications

• Manufacturer: MIR Medical International Research
• Product: Spirobank II Basic
• SKU: 911021
• Product Type: Portable handheld spirometer
• Flow Sensor: Bidirectional digital turbine
• Flow Range: ±16 L/s
• Volume Accuracy: ±2.5% or 50 mL
• Flow Accuracy: ±5% or 200 mL/s
• Dynamic Resistance: Less than 0.5 cm H₂O/L/s
• Temperature Sensor: Semiconductor, 0–45°C
• Memory Capacity: More than 10,000 tests
• Connectivity: USB 2.0
• Display: Monochrome LCD, 160 × 80 pixels
• Controls: Six-key membrane keyboard
• Battery: Rechargeable 3.7V, 1100 mAh lithium-ion
• Battery Autonomy: Approximately 50 hours
• Charging Connection: Micro-USB Type B
• Width: 55 mm
• Length: 160 mm
• Thickness: 25 mm
• Weight: Approximately 140 g with battery
• Electrical Protection: Internally powered
• Applied-Part Classification: Type BF
• Ingress Protection: IPX1
• Operating Temperature: 10–40°C
• Operating Humidity: 10–95% RH


Standards and Regulatory Information

The Spirobank II Basic is listed as compliant with applicable spirometry standards, including:

• ATS/ERS 2005
• ATS/ERS 2019 update
• ISO 26782
• ISO 23747
• IEC 60601-1
• FDA 510(k) clearance reference K061712

Users should verify current regulatory status and facility requirements before clinical.

Package Contents

The official U.S. SKU 911021 package lists:

• MIR Spirobank II Basic spirometer
• Rechargeable battery pack
• Micro-USB cable
• Carrying case
• Complimentary one-year MIR Spiro Platinum software code

The exact package contents supplied by MDPro must be confirmed before orturn508533view2

Turbines and Mouthpieces

The Spirobank II Basic is compatible with:

• FlowMIR disposable, factory-calibrated turbines
• MIR reusable turbine, item 910002

Disposable FlowMIR turbines include an integrated cardboard mouthpiece and are designed for single-patient use. Reusable turbines require compatible mouthpieces and appropriate cleaning and disinfection procedures.

Turbines, mouthpieces, nose clips, filters, and other consumables are included only when specifically stated in the final quotation. MIR warns that using non-original turbines may affect measurement accuracy and n167090search10

Software and Connectivity

The device connects to MIR Spiro software through USB for:

• Real-time spirometry testing
• Patient record management
• Test-result review
• Flow-volume and volume-time curves
• Predicted-value comparison
• Data backup
• Report generation
• EMR and EHR integration

Supported integration protocols may include HL7, GDT, FHIR, and MIR exchange protocols, depending on the selected software configuration and customer system.

Cleaning and Infection Control

Follow the current MIR instructions for cleaning, disinfection, inspection, storage, and infection control.

Disposable FlowMIR turbines are designed for single-patient use and do not require cleaning or calibration. Reusable turbines must be cleaned and disinfected between patients according to the manufacturer’s instructions.

Do not immerse the spirometer or allow liquid to enter the display, USB connection, battery compartment, or internal components.

Important Ordering Information

Before completing the order, Big Ben Medical Supplies will confirm:

• Current product availability
• Final selling price
• Exact package contents
• Turbine and mouthpiece inclusion
• Software activation details
• Warranty coverage
• Shipping cost
• Estimated delivery time
• Required accessories and consumables

Shipping Information

This product is available through Request a Quote.

Shipping cost, availability, package contents, warranty coverage, and estimated delivery time will be confirmed before order completion.

Warranty

Warranty duration and coverage must be confirmed in the final vendor quotation. Optional extended warranty coverage may be available separately.

Frequently Asked Questions

What is the MIR Spirobank II Basic used for?

It is used for basic spirometry and pulmonary-function screening, including FVC, VC, IVC, and pre/post-bronchodilator testing.

Can it operate without a computer?

Yes. It can operate independently in stand-alone mode and display results directly on its screen.

Can it connect to a computer?

Yes. It connects through USB and can perform real-time tests using MIR Spiro software.

Does it include spirometry software?

The official U.S. package lists a complimentary one-year MIR Spiro Platinum software code. Inclusion must be confirmed with the supplier.

Does it include a turbine?

Turbine inclusion is not confirmed in the MDPro listing. The final quotation must state whether a disposable or reusable turbine is included.

Can disposable turbines be used?

Yes. The device is compatible with MIR FlowMIR disposable turbines.

Can a reusable turbine be used?

Yes. It is compatible with the MIR reusable turbine, but compatible mouthpieces and proper reprocessing are required.

How many tests can it store?

The internal memory can store more than 10,000 spirometry tests.

How long does the battery operate?

The manufacturer’s technical data lists approximately 50 hours of battery autonomy under specified operating conditions.

Is it suitable for occupational health screening?

Yes. MIR identifies the device as suitable for general practice, occupational medicine, urgent care, pediatrics, sports medicine, and screening.
