Clear vascular audio in a compact, rechargeable Doppler

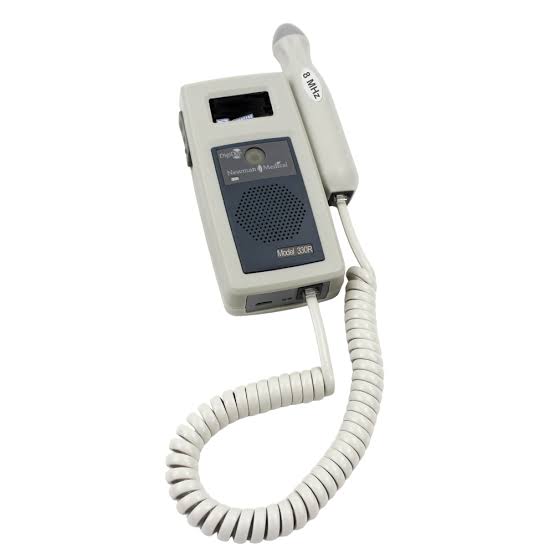

The Newman Medical DigiDop II DD-330R-D8 is a professional handheld vascular Doppler designed for clinicians who prefer clear blood-flow audio without the added size or complexity of a numerical display.

Its included 8 MHz vascular probe is optimized for vessels located near the skin’s surface, including the radial, posterior tibial, and dorsalis pedis arteries. This makes the DD-330R-D8 well suited for peripheral pulse detection, lower-extremity vascular checks, diabetic-foot examinations, wound-care assessments, and podiatry workflows.

Newman Medical’s Digital Sound Clarity—DSC™—technology processes the Doppler signal to improve the clarity of vascular blood-flow sounds. A high-fidelity internal speaker provides audible signal output, while the compact body is designed for comfortable use between examination rooms and during repeated assessments.

Rechargeable for repeated clinical use

The DD-330R uses rechargeable AAA NiMH batteries and Newman Medical’s Smart Recharge System. The manufacturer lists battery capacity at approximately 250 minutes with NiMH batteries, based on one-minute examination cycles. The system is designed to prevent overcharging and detect non-rechargeable batteries before charging begins.

Unlike display Dopplers, this model does not provide a numerical pulse-rate reading. It is intended for clinicians who assess vascular flow primarily by listening to Doppler audio. Status indicators provide information such as battery level, signal strength, and volume without adding a full numerical display.

Interchangeable probe system

The DigiDop system supports interchangeable Newman Medical probes. Practices can expand the device later with compatible 5 MHz vascular, 8 MHz SteadyDop, or audio PPG probes depending on their clinical workflow. The included standard 8 MHz probe is optimized for general peripheral and surface-vessel assessment.

Built for professional clinical environments

The pocket-sized housing includes a stainless-steel speaker grille and magnetic probe holder. Newman Medical designs and manufactures its DigiDop products near Denver, Colorado, and individually inspects and tests the units and probes.

The DD-330R is backed by a five-year manufacturer warranty covering defects in materials and workmanship, including breakage, parts, and labor. According to the manufacturer’s service policy, the customer is responsible for safely packaging and sending the device for service, while Newman Medical covers return shipping after an approved repair or replacement.

Key features

• Rechargeable, handheld vascular Doppler
• Includes an 8 MHz vascular probe
• Optimized for superficial and peripheral vessels
• Audio-only operation without a numerical heart-rate display
• Digital Sound Clarity—DSC™—signal processing
• Compact, pocket-sized design
• High-fidelity internal speaker
• Status indicators for battery, signal strength, and volume
• Interchangeable DigiDop probe compatibility
• Magnetic probe holder
• 3.5 mm stereo audio interface
• Approximately 250 minutes of NiMH battery operation
• Five-year manufacturer warranty
• Designed and manufactured in the United States

Common clinical applications

The DD-330R-D8 may support trained healthcare professionals during:

• Peripheral pulse detection
• Lower-extremity vascular assessment
• Diabetic-foot examinations
• Wound-care evaluations
• Podiatry examinations
• Radial pulse assessment
• Posterior tibial pulse detection
• Dorsalis pedis pulse detection
• Dialysis access assessments
• General vascular blood-flow assessment

This Doppler can support vascular assessment, but it should not be marketed as a complete automated ABI system. Additional cuffs, pressure-measurement equipment, clinical protocols, and trained interpretation may be required for ABI testing.

What is included

Based on the selected IMCO listing:

• Newman Medical DigiDop II DD-330R Doppler
• Standard 8 MHz vascular probe
• Recharger
• Manufacturer documentation

Important package clarification

The IMCO item description states “with recharger.” However, Newman Medical identifies the ACC-131 wall/table recharge base as an optional accessory. Therefore:

• Do not advertise the ACC-131 charging base as included.
• Do not show the charging base in the primary product image unless labeled as optional.
• Confirm whether IMCO supplies the ACC-140 USB recharger or another charging accessory before activating the listing


Best suited for

• Wound-care clinics
• Podiatry practices
• Diabetic-foot programs
• Vascular assessment rooms
• Dialysis and nephrology settings
• Urgent-care clinics offering peripheral vascular checks
• Mobile and community healthcare providers

May not be the right choice when

• The clinician requires a numerical pulse-rate display
• A complete automated ABI system is required
• Documentation or waveform recording is required
• Deep-vessel assessment is the primary application
• The practice requires both 5 MHz and 8 MHz probes in one package

For deeper arteries or veins, Newman Medical identifies its 5 MHz probe as the more appropriate option.

Frequently asked questions

What is the Newman Medical DD-330R-D8 used for?

It is a handheld audio Doppler used by trained healthcare professionals to detect and assess vascular blood-flow sounds. The included 8 MHz probe is optimized for peripheral vessels close to the skin.

Does the DD-330R-D8 display the patient’s pulse rate?

No. It is a non-display, audio-first vascular Doppler and does not provide a numerical heart-rate or pulse-rate reading. It provides Doppler audio along with basic status information such as battery, volume, and signal strength.

What vessels can be assessed with the 8 MHz probe?

The manufacturer identifies the 8 MHz probe as particularly sensitive for vessels near the surface, including the radial, posterior tibial, and dorsalis pedis arteries.

Is the DD-330R-D8 rechargeable?

Yes. The DD-330R uses rechargeable NiMH batteries and Newman Medical’s Smart Recharge System.

Is the charging base included?

The IMCO description states that the product comes “with recharger,” but Newman Medical lists the ACC-131 wall/table charging base as an optional accessory. The exact charging accessory supplied should be confirmed before shipment.

Is this a complete ABI system?

No. This listing is for the rechargeable Doppler and 8 MHz probe. A complete ABI examination may require properly sized vascular cuffs, a pressure-measurement system, additional accessories, and appropriate clinical training.

Can other probes be used with this Doppler?

Yes. Newman Medical states that DigiDop probes are interchangeable across DigiDop models. Compatible options include 5 MHz vascular, 8 MHz SteadyDop, and audio PPG probes.

Can it be used directly on an open wound?

No. The manufacturer’s user manual states that the probes are intended for use on intact skin and should not be placed on open skin.

Is this device restricted to professional use?

Yes. The manufacturer’s manual states that federal law restricts the device to sale by or on the order of a physician or other licensed practitioner.

What warranty is provided?

Newman Medical provides a five-year warranty covering defects in materials and workmanship, including breakage, parts, and labor, subject to the manufacturer’s warranty terms and exclusions.

How should the probe be cleaned?

Follow the cleaning and maintenance instructions in the official DigiDop user manual. Do not immerse the standard probe in liquid, and do not clean or maintain the equipment while it is in use.

Does it record Doppler audio?

Not in this configuration. Audio recording is associated with the separate DD-330AR model family. The selected DD-330R-D8 is the rechargeable non-recording version.
