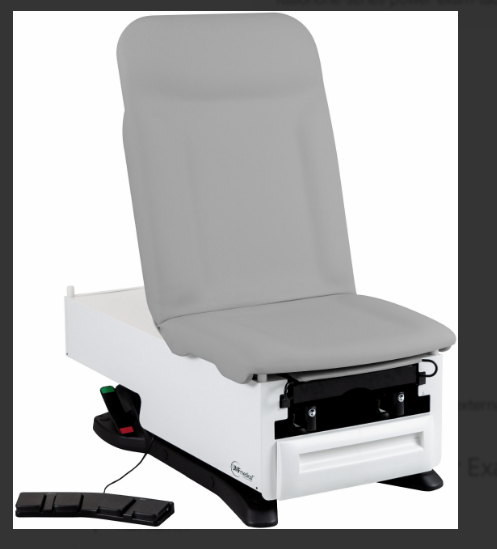

UMF Medical FusionONE Series Power Exam Table

Provide an exceptional patient care experience while protecting clinical workflows with the UMF Medical FusionONE Series Power Exam Table. Bridging the gap between high-end accessibility and cost-effective value, the FusionONE series is specifically designed to meet the rigorous demands of busy modern healthcare facilities, private practices, and multi-specialty clinics.

With an ADA-compliant low height of just 19 inches, patients of all ages and mobility levels can safely mount and dismount the table. Driven by a quiet, single-column electro-magnetic actuator, medical professionals can seamlessly adjust table elevation using the standard foot control to maintain comfortable, ergonomic working positions during exams.

Key Features

• ADA-Compliant Accessibility: Lowers down to a 19-inch seat height to allow independent patient transfers, reducing the risk of lifting injuries for staff.

• Smooth Electro-Magnetic Power Lift: Controlled via an intuitive, hands-free foot switch that quietly transitions the table height from 19" up to 32".

• Flexible Storage System: Outfitted with a massive, customizable front storage drawer alongside a large, reversible side drawer that can be configured to open left or right.

• Premium Infection Control Upholstery: Features a seamless, removable upholstered top treated with a protective finish for effortless sanitation between patient visits.

• Integrated Procedure Conveniences: Equipped with built-in foldaway stirrups (featuring 4 lateral locking positions), an integrated 1.5-inch plastic drain pan, and an 18"–21" paper roll holder.

• Heavy-Duty Galvanized Construction: Formed from heavy-gauge steel with a highly durable, easy-to-clean powder coat enamel surface engineered for longevity.

Technical Specifications

• Patient Weight Capacity: 500 lbs (226.8 kg) – Evenly Distributed

• Height Range: Minimum 19" (48.3 cm) at seat to Maximum 32" (81.3 cm)

• Table Width: 28" (71.12 cm)

• Table Length: 58" (147.3 cm) to 76" (193.0 cm) with heavy-gauge steel leg extension pull-out fully deployed

• Storage Configuration: * Front Drawer: 18.0" W x 12.0" D x 3.0" H

  • Side Drawer: 17.5" W x 21.0" D x 5.0" H (Reversible left/right orientation)

• Electrical Requirements: 120-240 VAC, 50-60 Hz (International Model Compatible)

Shipping Information

This product qualifies for direct freight/carrier shipping. To ensure the most accurate and competitive rates based on your delivery location and facility requirements (e.g., liftgate or inside delivery), shipping costs will be calculated and added to your order after checkout or invoiced separately.
