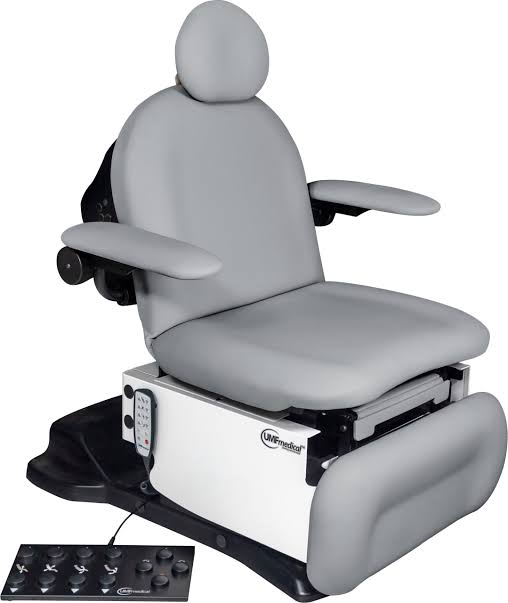

The UMF Medical Power5016 Podiatry & Wound Care Procedure Chair is a fully powered clinical chair designed for podiatry practices, wound care centers, diabetic foot clinics, vascular clinics, hospitals, and outpatient procedure rooms.

Model 5016-650-100 provides powered height, backrest, seat tilt, and leg-lift adjustment to help clinicians position patients efficiently for foot, ankle, lower-extremity, and wound care procedures. Its low 18.5-inch access height and powered leg lift allow patients to approach and enter the chair from the front, helping reduce the need for staff to manually lift or reposition a patient’s legs.

The OneTouch Patient Positioning System hand control provides programmable positioning and return-to-home operation. A 650 lb patient weight capacity, 28-inch-wide seat, removable seamless upholstery, and double-articulating headrest make the Power5016 suitable for a wide range of patient sizes and clinical procedures.

Key Features

• Four powered positioning functions
• Powered height adjustment
• Powered backrest adjustment
• Powered seat tilt
• Powered leg lift and extension
• OneTouch Patient Positioning System hand control
• Programmable patient-position memory
• Return-to-home positioning
• Low 18.5-inch patient access height
• Maximum seat height of 37 inches
• 650 lb patient weight capacity
• Front-entry chair design
• 28-inch-wide seat
• Double-articulating adjustable headrest
• Removable seamless upholstered top
• PreFixx protective upholstery finish
• Concealed 18-inch paper-roll holder
• Built-in hospital-grade electrical receptacle with child-safety cover
• Dual electromechanical actuator system
• Multiple upholstery colors available
• Ships assembled for easier installation
• Made in the USA
• Three-year limited manufacturer warranty

Clinical Benefits

Easier Patient Access

The chair lowers to approximately 18.5 inches at the seat, helping improve access for patients who may have limited mobility. The powered leg section allows patients to enter the chair from the front without requiring staff to manually lift the patient’s legs.

Efficient Patient Positioning

The powered hi-lo, back, tilt, and leg-extension functions allow clinicians to adjust the patient’s position according to the examination or procedure being performed.

The programmable hand control supports commonly used chair positions and provides return-to-home functionality for a more efficient workflow between patients.

Support for Larger Patients

The Power5016 supports patients weighing up to 650 lb when weight is distributed according to the manufacturer’s operating instructions.

Infection-Control-Friendly Upholstery

The removable seamless upholstered top features PreFixx protective finish. Its seamless design helps reduce areas where dirt and fluids may collect and supports routine cleaning and disinfection according to the manufacturer’s care instructions.

Technical Specifications

• Manufacturer: UMF Medical
• Product Series: Power5016
• Model Number: 5016-650-100
• Product Type: Powered podiatry and wound care procedure chair
• Patient Weight Capacity: 650 lb / 295 kg
• Minimum Seat Height: 18.5 in ±0.5 in / 46.9 cm ±1.27 cm
• Maximum Seat Height: 37 in / 93.9 cm
• Seat Width: 28 in / 71.12 cm
• Backrest Width: 26.5 in / 67.31 cm
• Overall Length: 73–80 in with foot section extended / 185.42–203.2 cm
• Leg Rest Dimensions: 28 W × 13 D in / 71.12 W × 33.02 D cm
• Net Weight: Approximately 411 lb / 186 kg
• Shipping Weight: Approximately 451 lb / 205 kg
• Shipping Dimensions: 64 L × 30 W × 41 H in / 163 × 76 × 104 cm
• Standard Electrical Requirement: 120 VAC, 60 Hz
• International Electrical Configuration: 220–240V, 50/60 Hz
• International Model: 5016-650-101
• Power System: Dual electromechanical actuators
• Positioning Control: Programmable OneTouch hand control
• Upholstery: Removable seamless top with PreFixx protective finish
• Warranty: Three-year limited manufacturer warranty
• Condition: New

Suitable Clinical Settings

The UMF Medical Power5016 is designed for use in:

• Podiatry clinics
• Wound care centers
• Diabetic foot clinics
• Vascular medicine practices
• Limb-preservation programs
• Orthopedic foot and ankle clinics
• Hospital wound care departments
• Outpatient procedure rooms
• Long-term care wound programs
• Rehabilitation facilities
• Multispecialty medical clinics

Common Clinical Applications

The chair may support patient positioning during:

• Podiatric examinations
• Foot and ankle assessments
• Diabetic foot evaluations
• Lower-extremity wound assessment
• Wound dressing changes
• Ulcer evaluation and treatment
• Nail and skin procedures
• Postoperative foot and ankle follow-up
• Vascular lower-extremity assessments
• Minor outpatient procedures

Standard Configuration

The 5016-650-100 configuration includes:

• UMF Medical Power5016 procedure chair
• Powered hi-lo adjustment
• Powered backrest
• Powered seat tilt
• Powered leg lift and extension
• OneTouch Patient Positioning System hand control
• Double-articulating headrest
• Removable seamless upholstered top
• Hospital-grade electrical receptacle with child-safety cover
• Concealed paper-roll holder
• Standard stationary base
• Selected standard upholstery color

Foot control, armrests, safety straps, accessory rails, light brackets, IV poles, and other accessories are not included unless specifically listed in the final quotation.

Optional Accessories

Available accessories may include:

• Adjustable self-leveling armrests, pair — 044
• Universal accessory rail — 045
• Removable U-shaped headrest — 050
• Removable rectangular headrest — 051
• Two-hook IV pole kit — 234
• Four-hook IV pole kit — 235
• Fixed armboard package — 238
• Articulating armboard package — 239
• Welch Allyn examination-light bracket, patient left — 473
• Welch Allyn examination-light bracket, patient right — 474
• Patient safety strap, factory installed — 830
• International 220V outlet package — 873
• Easy power table installation kit — 910

Accessory compatibility and factory-installation requirements must be confirmed before ordering.

Upholstery Colors

Available upholstery colors include:

• Soft Linen
• Smoky Cashmere
• Warm Sand
• Creamy Latte
• Chocolate Truffle
• Lemon Meringue
• Cherry Blossom
• Blue Skies
• Lakeside Blue
• Twilight Blue
• Morning Fog
• Fine Wine
• True Graphite
• Classic Black
• Mint Leaf
• Deep Forest

The required upholstery color must be selected before the order is submitted. Actual colors may vary from colors displayed on a monitor.

Electrical Requirements

The standard United States model operates on 120 VAC, 60 Hz. The chair should be connected to an appropriate grounded hospital-grade electrical outlet.

An international model configured for 220–240V, 50/60 Hz is available under model 5016-650-101.

The electrical configuration must be confirmed before ordering.

Cleaning and Maintenance

Follow the current UMF Medical owner’s manual for cleaning, disinfection, inspection, and routine care.

The upholstery should be cleaned using products compatible with the PreFixx protective finish. Immediately remove spilled fluids and prevent liquid from entering the hand control, actuators, receptacle, power connections, or other electrical components.

Do not use ammonia-based cleaners on painted surfaces. Internal repairs and electrical service should be performed only by qualified service personnel.

Safety Information

• For professional clinical use only
• Maximum patient weight is 650 lb
• Patient weight must be distributed across the chair surface
• Do not use the backrest as a seat
• Keep patients, staff, cords, and equipment clear of moving components
• Lock chair functions when the equipment is unattended
• Inspect the power cord, hand control, upholstery, headrest, and moving components before use
• Do not operate damaged or improperly functioning equipment
• The chair is not intended for patient transport
• Use only manufacturer-approved accessories
• Read the complete owner’s manual before operating the chair

Ordering Information

The Power5016 is available through Request a Quote.

Before order completion, Big Ben Medical Supplies will confirm:

• Current product availability
• Selected upholstery color
• Exact package contents
• Required accessories
• Electrical configuration
• Manufacturing lead time
• Freight cost
• Dock or liftgate requirements
• Inside delivery or white-glove delivery
• Installation requirements
• Warranty coverage
• Final selling price

Shipping and Delivery

This product ships by freight due to its size and weight.

Available delivery services may include:

• Dock-to-dock delivery
• Liftgate delivery
• Inside delivery
• White-glove delivery
• Room-of-choice placement
• Packaging removal
• Removal of existing equipment

Delivery services and freight charges will be confirmed according to the facility location, receiving capabilities, and installation requirements.

Warranty

The UMF Medical Power5016 includes a three-year limited manufacturer warranty for qualifying defects in materials and workmanship under normal interior use and service.

Final warranty coverage, exclusions, registration requirements, replacement parts, labor responsibilities, and freight terms will be confirmed before order completion.

Frequently Asked Questions

What is the weight capacity of the Power5016?

The chair supports patients weighing up to 650 lb when used according to the manufacturer’s instructions.

How low does the chair go?

The minimum seat height is approximately 18.5 inches, helping provide easier access for patients with limited mobility.

What is the maximum chair height?

The seat can be raised to approximately 37 inches.

Which functions are powered?

The Power5016 provides powered height, backrest, seat tilt, and leg lift or extension.

Does it include a foot control?

No. Model 5016-650-100 includes the programmable OneTouch hand control. A foot-control configuration is available with other models or options.

Does it include armrests?

Armrests are optional and are not included unless specifically listed in the final quotation.

Is the upholstery removable?

Yes. The chair includes a removable seamless upholstered top with PreFixx protective finish.

Can the upholstery color be selected?

Yes. The chair is available in multiple upholstery colors. The selected color must be specified before ordering.

Does the chair include a paper-roll holder?

Yes. It includes a concealed holder designed for an 18-inch paper roll.

Is an electrical receptacle included?

Yes. The standard configuration includes a hospital-grade receptacle with a child-safety cover.

Does the chair arrive assembled?

The vendor listing states that the chair ships assembled. Delivery, placement, and installation requirements must still be confirmed before ordering.

Is this chair suitable only for podiatry?

No. It is designed for podiatry and wound care, but it may also support diabetic foot care, vascular evaluations, lower-extremity examinations, and other appropriate outpatient procedures.
