Fast, objective vision screening from six months through adulthood

The Welch Allyn Spot Vision Screener VS100S-B is a handheld, portable autorefractor designed to screen patients from six months of age through adulthood.

The device captures binocular measurements from a non-contact distance of approximately 3.3 feet and provides an easy-to-understand result indicating whether all measurements are within the selected screening criteria or whether a complete eye examination is recommended.

The Spot Vision Screener assists qualified healthcare professionals with identifying potential refractive errors and ocular misalignment. It is a screening device and does not replace a comprehensive examination by an optometrist or ophthalmologist.

Screens both eyes within seconds

Point-and-shoot auto-capture technology measures both eyes simultaneously within seconds.

The device provides visual and audible fixation targets to help maintain patient attention, making it practical for pediatric patients, non-verbal individuals, patients with disabilities, and others who may have difficulty completing chart-based vision testing.

Screens for six amblyopia risk factors

The Spot Vision Screener supports objective screening for potential indications of:

• Myopia
• Hyperopia
• Astigmatism
• Anisometropia
• Strabismus
• Anisocoria

Screening results should be evaluated by a qualified healthcare professional. The device does not provide a final diagnosis and its measurements should not be used directly to prescribe corrective eyewear.

Touchscreen-guided workflow

The rear touchscreen provides subject alignment, data entry, screening controls, patient queues, result review, device settings, and record-management functions.

On-screen instructions guide the user through positioning and image capture. Once screening is complete, the device displays the measurements and indicates whether a complete eye examination is recommended according to the configured screening criteria.

Binocular and monocular screening

The device supports simultaneous binocular screening as well as monocular screening when required.

Each screening evaluates:

• Spherical equivalent
• Cylindrical refractive error
• Cylindrical axis
• Pupil size
• Pupillary distance
• Gaze deviation

The screening criteria may be configured by authorized users. Changes to referral criteria should be performed only by qualified vision professionals.

Wireless printing and data export

The Spot Vision Screener supports built-in driverless wireless printing to compatible network printers.

Screening summary reports can also be exported through:

• Wireless network connection
• USB drive
• Compatible electronic medical record workflow
• Welch Allyn SpotConnect application

SpotConnect integration for Epic and Cerner is available separately and is not included with the standard VS100S-B configuration.

Portable rechargeable operation

The internal rechargeable battery provides more than four hours of operation after a full charge.

A fully depleted battery requires approximately two hours to recharge. Welch Allyn recommends battery replacement through an authorized repair facility after approximately 2.5 years under normal use.

Factory calibrated

The Spot Vision Screener is calibrated during manufacturing and does not require routine field calibration after delivery.

Routine maintenance consists primarily of keeping the front optical glass, touchscreen, and exterior surfaces clean and inspecting the device and accessories for damage.

Compact handheld design

The device measures approximately 8.5 × 6.75 × 4.75 inches and weighs approximately 2.55 lb.

Its compact design and included carrying case support movement between examination rooms, pediatric clinics, schools, community-screening programs, occupational-health locations, and other approved healthcare environments.

Key Features

• Handheld portable autorefractor
• Designed for patients from six months through adulthood
• Simultaneous binocular screening
• Monocular screening capability
• Non-contact measurement from approximately 3.3 feet
• Auto-capture of both eyes within seconds
• Touchscreen-guided operation
• Visual and audible fixation targets
• Screening for six amblyopia risk factors
• Spherical equivalent measurement
• Cylindrical refractive-error measurement
• Cylindrical-axis measurement
• Pupil-size measurement
• Pupillary-distance measurement
• Gaze-deviation measurement
• Clear screening result and referral recommendation
• Wireless network capability
• Built-in driverless wireless printing
• USB import and export
• Optional SpotConnect EMR connectivity
• Rechargeable lithium-ion battery
• More than four hours of operation per charge
• Approximately two-hour recharge time
• No routine field calibration required
• Carrying case included
• One-year manufacturer limited warranty

Common Applications

• Pediatric vision screening
• Primary-care vision screening
• Family-medicine practices
• Urgent-care centers
• Pediatric physician offices
• School-health programs
• Community screening events
• Occupational-health screening
• Developmental and special-needs clinics
• Adult vision screening
• Non-verbal patient screening
• Patients unable to complete a conventional eye chart
• Referral assessment for a complete eye examination

Technical Specifications

Manufacturer: Welch Allyn

Product Family: Spot Vision Screener

Model: VS100

SKU: VS100S-B

Product Type: Handheld vision screener and autorefractor

Intended Patient Range: Six months through adulthood

Screening Method: Eccentric photorefraction / photoretinoscopy

Measurement Mode: Binocular or monocular

Measurement Distance: Approximately 3.3 ft ± 2 in / 1 m ± 5 cm

Time per Measurement: Seconds

Spherical Equivalent Range: -7.50 D to +7.50 D in 0.25 D increments

Cylindrical Range: -3.00 D to +3.00 D in 0.25 D increments

Cylindrical Axis Range: 1° to 180° in 1° increments

Pupil-Size Range:

• Ages 6 months–19 years: 4.0–9.0 mm
• Ages 20–100 years: 3.0–9.0 mm

Pupillary-Distance Range: 35–80 mm in 1 mm increments

Gaze-Measurement Range: 0–20° nasal, temporal, inferior, and superior

Fixation Target: Random visual pattern and audible sound

Display: Rear touchscreen

Wireless Network: IEEE 802.11 a/b/g/n

Data Transfer: Wireless network and USB

Printing: Compatible driverless wireless printing

Battery: Internal rechargeable lithium-ion battery

Operating Time: More than four hours per full charge

Recharge Time: Approximately two hours from fully depleted

Expected Battery Life: Approximately 2.5 years under normal use

Power-Supply Input: 100–240 VAC nominal, 47–63 Hz

Dimensions: Approximately 8.5 × 6.75 × 4.75 in / 21.6 × 17.1 × 12.1 cm

Weight: Approximately 2.55 lb / 1.16 kg

Operating Temperature: 50°F–104°F / 10°C–40°C

Ingress Protection: IPX0; not protected against water ingress

Calibration: Factory calibrated; no routine field calibration required

Warranty: One-year manufacturer limited warranty

Extended Service Options: One-, two-, and five-year Baxter Service Programs available separately.

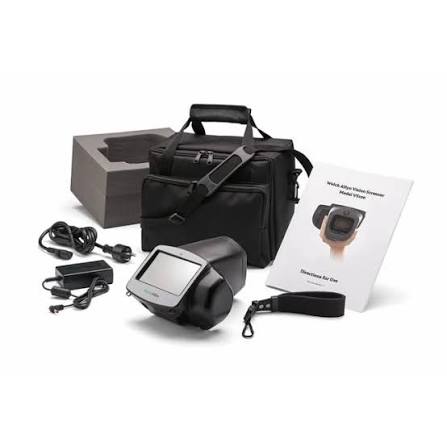

What Is Included

• Welch Allyn Spot Vision Screener VS100
• U.S. power supply and power cord
• Wrist strap
• Protective carrying case
• Cleaning cloth
• Quick Start Guide
• Directions for Use
• Hook-and-loop cable straps

The SpotConnect EMR application, network printer, USB drive, neck strap, extended service program, and other optional accessories are not included unless specifically listed in the final quotation.

Compatible Accessories and Services

Neck Strap for Spot VS100 Vision Screener
Item Number: 106145

VS100 Carrying Case with Foam
Item Number: 413338

VS100 U.S. Power Supply Set
Item Number: 106369

SpotConnect EMR Application
Item Number: VS100-EMR

One-Year Baxter Service Program
Item Number: S1-VS100

Two-Year Baxter Service Program
Item Number: S1-VS100-2

Five-Year Baxter Service Program
Item Number: S1-VS100-5

Accessories and service programs are sold separately unless included in the final quotation.

Important Use Information

• The Spot Vision Screener is a screening device and does not replace a complete eye examination.
• Results should not be used directly to prescribe corrective eyewear.
• Referral and treatment decisions remain the responsibility of qualified healthcare professionals.
• Confirm patient identity before printing or transferring screening reports.
• Use approved data-security controls when storing or transmitting patient information.
• Do not use the device near MRI equipment or high-frequency surgical equipment.
• The device is not waterproof and must not be immersed or exposed to liquid.
• Only manufacturer-approved accessories should be connected to the device.
• Do not store the device in its carrying case while the power cord is connected.

Frequently Asked Questions

What does the Spot Vision Screener measure?

It measures refractive information, pupil size, pupillary distance, and gaze deviation to help identify potential vision problems and determine whether a complete eye examination should be considered.

What patient ages can be screened?

The device is intended for patients from six months of age through adulthood.

Does the device screen both eyes at the same time?

Yes. It performs simultaneous binocular screening and also supports monocular screening.

How far should the device be from the patient?

The recommended screening distance is approximately 3.3 feet or 1 meter.

How long does a measurement take?

Measurements are captured within seconds after correct patient alignment is achieved.

Does it require dilation?

No dilation is required for routine screening.

What vision risk factors can it identify?

It supports screening for myopia, hyperopia, astigmatism, anisometropia, strabismus, and anisocoria.

Does it provide a prescription for glasses?

No. Its results must not be used directly to prescribe corrective eyewear.

Does the screening replace a complete eye examination?

No. The device assists with screening and referral decisions but does not replace a comprehensive examination by an eye-care professional.

Can results be printed?

Yes. The device supports driverless wireless printing to compatible network printers.

Can results be transferred electronically?

Yes. Reports may be exported through USB or wireless workflows. Optional SpotConnect integration is available for compatible Epic and Cerner EMR environments.

How long does the battery last?

The battery provides more than four hours of operation on a full charge.

How long does charging take?

A fully depleted battery requires approximately two hours to recharge.

Does the device require calibration?

No routine field calibration is required after the device has been calibrated during manufacturing.

What warranty is included?

The standard product includes a one-year manufacturer limited warranty. Optional one-, two-, and five-year Baxter Service Programs are available separately.

Documents and Downloads

Welch Allyn Spot Vision Screener Product Brochure — PDF

https://www.hillrom.com/content/dam/hillrom-aem/us/en/sap-documents/MRC/80023/80023914MRCPDF.pdf

Welch Allyn Spot Vision Screener Product Specifications — PDF

https://www.hillrom.com/content/dam/hillrom-aem/us/en/sap-documents/MRC/80021/80021031MRCPDF.pdf

Welch Allyn Spot Vision Screener Directions for Use — PDF

https://www.hillrom.com/content/dam/hillrom-aem/us/en/sap-documents/LIT/80024/80024081LITPDF.pdf

Welch Allyn Spot Vision Screener Quick Reference Guide — PDF

https://www.hillrom.com/content/dam/hillrom-aem/us/en/sap-documents/LIT/80024/80024004LITPDF.pdf
