Heavy-duty patient transport with a 1,000 lb capacity

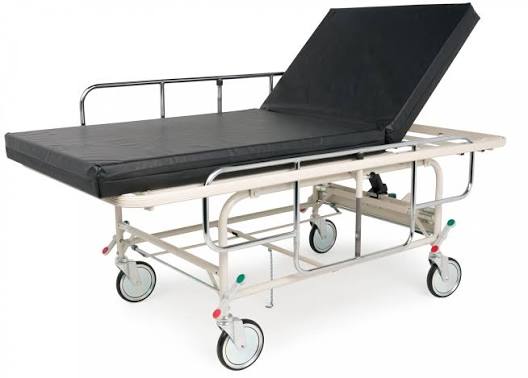

The Gendron G1190 Heavy-Duty Transport Stretcher is designed for the treatment and transport of larger patients in urgent-care centers, hospitals, outpatient facilities, emergency treatment areas, and other clinical environments.

The stretcher supports up to 1,000 lb when the patient’s weight is evenly distributed. Its wide patient surface, hydraulic Fowler backrest, vertical side rails, high-density patient pad, and heavy-duty mobility system provide a practical transport platform for bariatric and high-capacity patient-care applications.

Wide patient surface

The G1190 provides a patient surface measuring approximately 39 inches wide by 79 inches long.

The wider surface helps accommodate larger patients while supporting positioning during transport, treatment, examination, and short-term observation.

The stretcher measures approximately 40 inches wide, 80 inches long, and 29.5 inches high from the floor to the patient surface.

Hydraulic Fowler backrest

The hydraulic Fowler backrest adjusts from 0 to 80 degrees, allowing clinical staff to position the patient from a flat surface to a raised-back position.

The adjustable backrest can support patient comfort, respiratory positioning, examination, treatment, and observation. Position changes should be performed by trained staff after confirming that the patient is safely positioned.

Two-position vertical side rails

The stretcher includes two-position vertical side rails designed to support patient security during movement and positioning.

Each side rail measures approximately 57.5 inches long and extends approximately 10.5 inches above the patient surface when raised.

The rails can be lowered during patient transfers and raised before transport. Facility transfer procedures and fall-prevention policies should always be followed.

Heavy-duty caster system

Four heavy-duty 8-inch casters support movement throughout clinical facilities.

The caster system provides steer and brake functions to assist with directional control and secure positioning. The brakes should be engaged whenever the stretcher is stationary or during patient transfers.

Four-inch patient pad

The G1190 includes a 4-inch high-density patient pad with a nylon cover.

The cushioned surface supports patient comfort during transport, treatment, and temporary observation. The pad and stretcher surfaces should be cleaned and disinfected according to facility infection-control procedures.

IV-pole compatibility

Four IV-pole sockets are integrated into the stretcher, with one socket located at each corner.

The compatible Gendron 10122 IV pole is available separately and is not included with the standard G1190 configuration.

Durable steel construction

The stretcher features powder-coated steel construction designed for heavy-duty clinical use.

With a wide patient platform, reinforced frame, high-capacity design, and mobile base, the G1190 provides a dedicated transport option for facilities that treat patients exceeding the capacity of standard stretchers.

The G1190 is designed and manufactured in the United States.

Key Features

• Heavy-duty bariatric patient transport stretcher
• 1,000 lb maximum patient weight capacity
• Weight capacity based on an evenly distributed load
• Hydraulic Fowler backrest
• Fowler adjustment from 0 to 80 degrees
• Powder-coated steel construction
• Two-position vertical side rails
• Four heavy-duty 8-inch casters
• Steer and brake functions
• 4-inch high-density patient pad
• Durable nylon pad cover
• Four IV-pole sockets
• One IV socket at each corner
• Wide 39-inch patient surface
• Designed for treatment and transport of larger patients
• Manufactured in the United States

Common Applications

• Bariatric patient transport
• High-capacity patient movement
• Urgent-care treatment areas
• Hospital patient transport
• Outpatient clinical facilities
• Emergency treatment rooms
• Patient observation areas
• Ambulatory healthcare facilities
• Diagnostic and procedural departments
• Recovery and stabilization areas
• Movement between examination and treatment rooms

Technical Specifications

Manufacturer: GF Health Products

Brand: Gendron

Model: G1190

Product type: Heavy-duty bariatric transport stretcher

Maximum patient weight capacity: 1,000 lb / 453.6 kg

Weight-capacity condition: Evenly distributed

Overall width: Approximately 40 inches / 101.6 cm

Overall length: Approximately 80 inches / 203.2 cm

Patient-surface height: Approximately 29.5 inches / 74.9 cm

Patient-surface width: Approximately 39 inches / 99.1 cm

Patient-surface length: Approximately 79 inches / 200.7 cm

Base clearance: Approximately 10 inches / 25.4 cm

Backrest type: Hydraulic Fowler backrest

Fowler adjustment range: 0 to 80 degrees

Side-rail type: Two-position vertical side rails

Side-rail length: Approximately 57.5 inches / 146.1 cm

Side-rail height above patient surface: Approximately 10.5 inches / 26.7 cm

Frame construction: Powder-coated steel

Caster diameter: 8 inches / 20.3 cm

Caster functions: Steer and brake

Patient pad: 4-inch high-density pad

Pad cover: Nylon

IV sockets: Four

Compatible optional IV pole: Gendron 10122

Approximate shipping weight: 330 lb / 149.7 kg, excluding accessories

UPC: 717076397209

Packaging: One stretcher per package

Country of manufacture: United States

What Is Included

• Gendron G1190 Heavy-Duty Transport Stretcher
• Hydraulic Fowler backrest
• Two-position vertical side rails
• Four heavy-duty 8-inch casters
• Steer and brake system
• 4-inch high-density patient pad
• Nylon pad cover
• Four integrated IV-pole sockets

Optional Accessories

• Gendron 10122 IV pole
• Compatible patient-positioning accessories
• Compatible transport accessories
• Facility-approved patient safety and transfer equipment

Frequently Asked Questions

What is the weight capacity of the Gendron G1190?

The G1190 supports a maximum patient weight of 1,000 lb when the weight is evenly distributed.

Is the G1190 designed for bariatric patients?

Yes. The G1190 is a heavy-duty transport stretcher designed for the treatment and transport of larger patients.

What size is the patient surface?

The patient surface measures approximately 39 inches wide by 79 inches long.

Can the backrest be adjusted?

Yes. The hydraulic Fowler backrest adjusts from 0 to 80 degrees.

Is the stretcher height adjustable?

The backrest is hydraulically adjustable, but the manufacturer lists the patient-surface height at approximately 29.5 inches and does not identify a height-adjustment function.

Does the stretcher include side rails?

Yes. It includes two-position vertical side rails measuring approximately 57.5 inches long.

What type of casters does it have?

The G1190 includes four heavy-duty 8-inch casters with steer and brake functions.

Is a patient pad included?

Yes. A 4-inch high-density patient pad with a nylon cover is included.

Is an IV pole included?

No. The stretcher includes four IV-pole sockets. The compatible Gendron 10122 IV pole is available separately.

Does the stretcher include an oxygen-cylinder holder?

An oxygen-cylinder holder is not listed as a standard component.

What is the approximate shipping weight?

The approximate shipping weight is 330 lb, excluding optional accessories.

Where is the stretcher manufactured?

The G1190 is designed and manufactured in the United States.

Documents and Product Resources

Gendron G1190 User Manual — PDF

https://shop.grahamfield.com/nosync/productimagesV2/ProductAdditionalInfoItemOriginal8848.PDF

Gendron G1190 Product Specification Sheet — PDF

https://shop.grahamfield.com/nosync/productimagesV2/ProductAdditionalInfoItemOriginal9399.PDF
